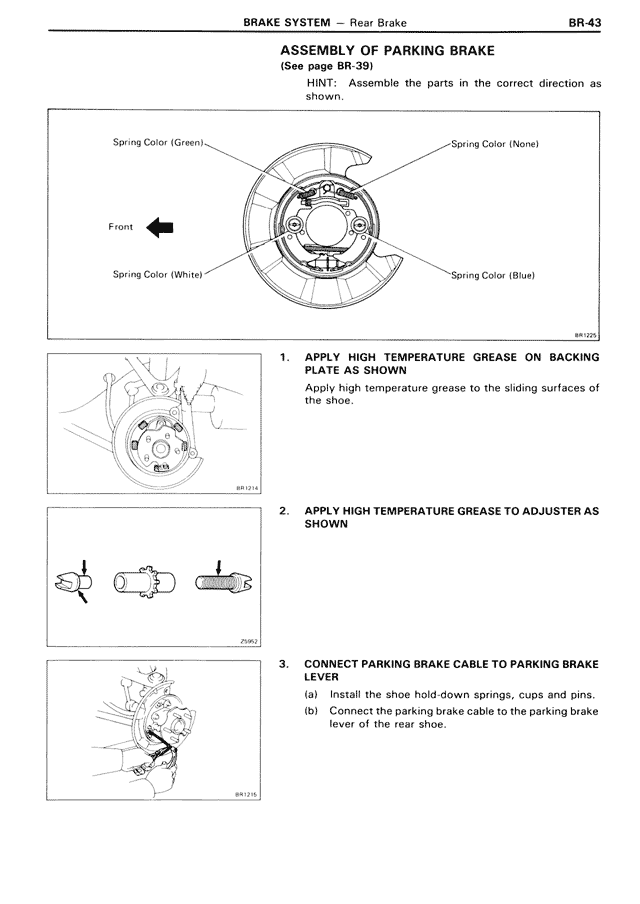

ASSEMBLY OF PARKING BRAKE
(See page BR-39)
HINT: Assemble the parts in the correct direction as shown.
Spring Color (Green)
Front ←
Spring Color (White)
Spring Color (None)
Spring Color (Blue)
BR1253
1. APPLY HIGH TEMPERATURE GREASE ON BACKING PLATE AS SHOWN
Apply high temperature grease to the sliding surfaces of the shoe.
BR1214
2. APPLY HIGH TEMPERATURE GREASE TO ADJUSTER AS SHOWN
C2063
3. CONNECT PARKING BRAKE CABLE TO PARKING BRAKE LEVER
(a) Install the shoe hold-down springs, cups and pins.
(b) Connect the parking brake cable to the parking brake lever at rear shoe.
BR1215
