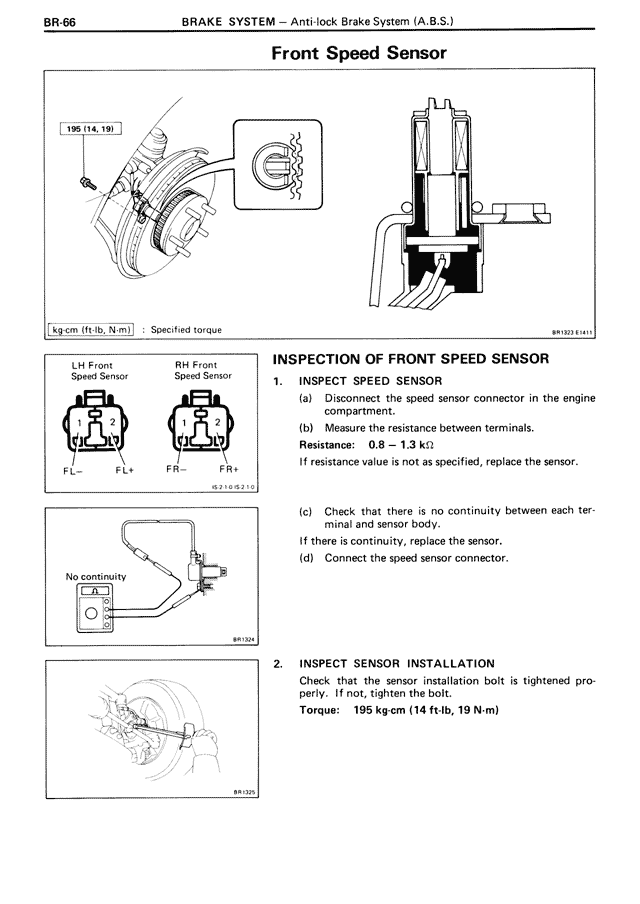

BRAKE SYSTEM — Anti-lock Brake System (A.B.S.)
Front Speed Sensor
195 (14, 19)
kg·cm (ft·lb, N·m) : Specified torque
BR10321-E4115
LH Front
Speed Sensor
RH Front
Speed Sensor
FL- FL+ FR- FR+
BZT4-62J12
No continuity
BR1024
BR1025
INSPECTION OF FRONT SPEED SENSOR
1. INSPECT SPEED SENSOR
(a) Disconnect the speed sensor connector in the engine compartment.
(b) Measure the resistance between terminals.
Resistance: 0.8 — 1.3 kΩ
If resistance value is not as specified, replace the sensor.
(c) Check that there is no continuity between each terminal and sensor body.
If there is continuity, replace the sensor.
(d) Connect the speed sensor connector.
2. INSPECT SENSOR INSTALLATION
Check that the sensor installation bolt is tightened properly. If not, tighten the bolt.
Torque: 195 kg·cm (14 ft·lb, 19 N·m)
