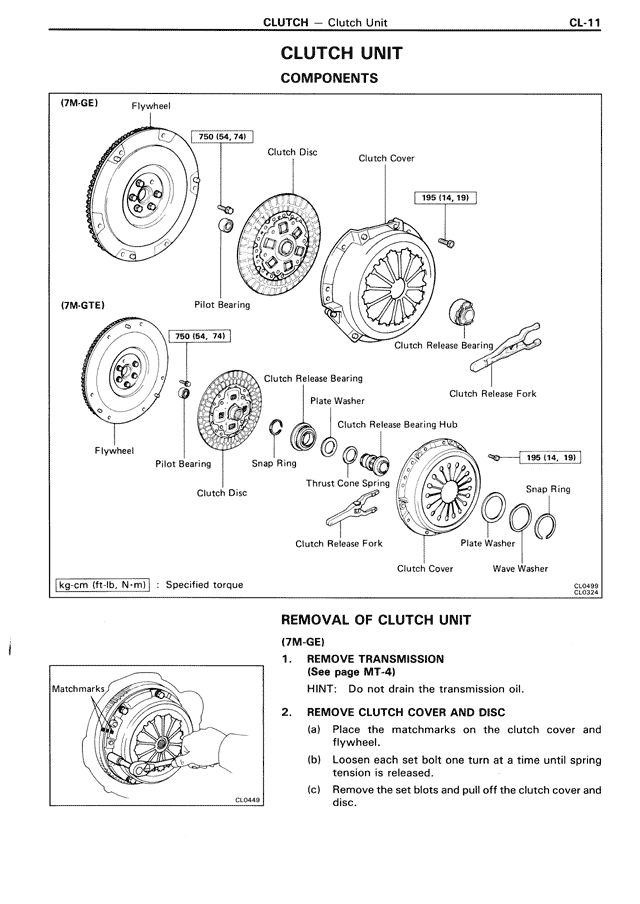

CLUTCH UNIT
COMPONENTS
(7M-GE)
Flywheel
[750 (54, 74)]
Clutch Disc
Clutch Cover
[195 (14, 13)]
Clutch Release Bearing
Clutch Release Fork
(7M-GTE)
Flywheel
[750 (54, 74)]
Pilot Bearing
Clutch Disc
Clutch Release Bearing
Plate Washer
Clutch Release Bearing Hub
Snap Ring
Thrust Cone Spring
[195 (14, 13)]
Snap Ring
Plate Washer
Clutch Release Fork
Clutch Cover
Wave Washer
[kg-cm (ft-lb, N-m)] : Specified torque
CL04/89
CL0374
REMOVAL OF CLUTCH UNIT
(7M-GE)
1. REMOVE TRANSMISSION
(See page MT-4)
HINT: Do not drain the transmission oil.
2. REMOVE CLUTCH COVER AND DISC
(a) Place the matchmarks on the clutch cover and
flywheel.
(b) Loosen each set bolt one turn at a time until spring
tension is released.
(c) Remove the set blots and pull off the clutch cover and
disc.
Matchmarks
CL04/43
