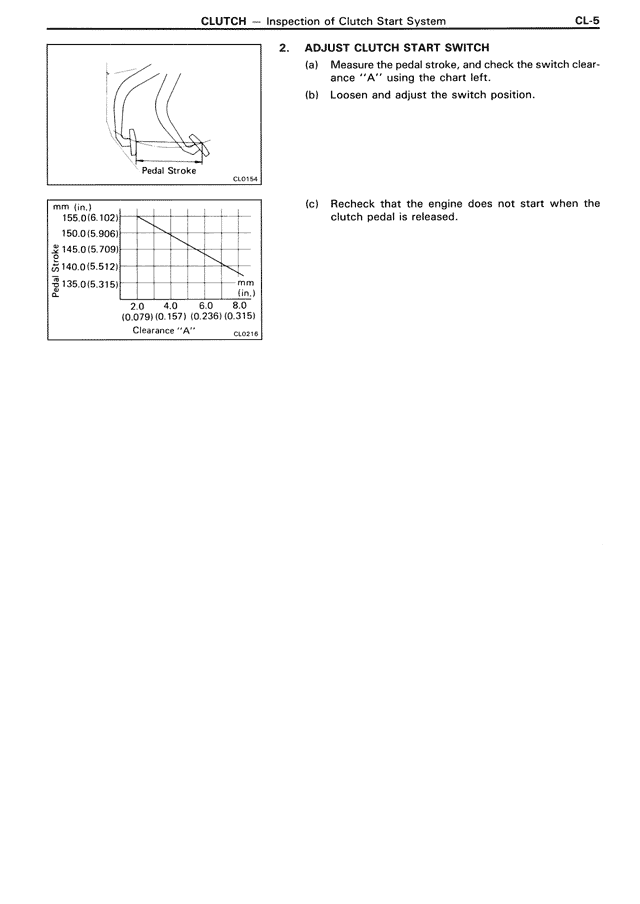

2. ADJUST CLUTCH START SWITCH (a) Measure the pedal stroke, and check the switch clearance "A" using the chart left. (b) Loosen and adjust the switch position. (c) Recheck that the engine does not start when the clutch pedal is released. Pedal Stroke mm (in.) 155 (5.102) 150 (5.906) 145 (5.709) 140 (5.512) 135 (5.315) mm (in.) 2 4 6 8 (0.079) (0.157) (0.236) (0.315) Clearance "A" Pedal Stroke CL0154 CL0215
