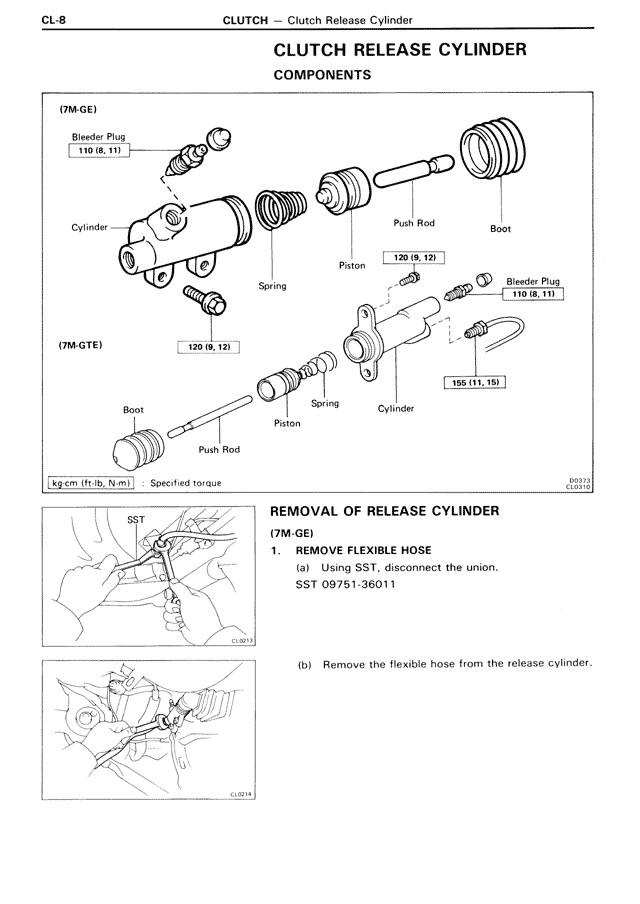

CLUTCH RELEASE CYLINDER COMPONENTS (7M-GE) Bleeder Plug 110 (8, 11) Cylinder Push Rod 120 (9, 12) Boot Piston Spring Bleeder Plug 110 (8, 11) (7M-GTE) 120 (9, 12) Boot Push Rod Piston Spring 155 (11, 15) Cylinder kg·cm (ft·lb, N·m) : Specified torque P00373 E00373 REMOVAL OF RELEASE CYLINDER (7M-GE) 1. REMOVE FLEXIBLE HOSE (a) Using SST, disconnect the union. SST 09751-36011 SST CL0213 (b) Remove the flexible hose from the release cylinder. CL0214
