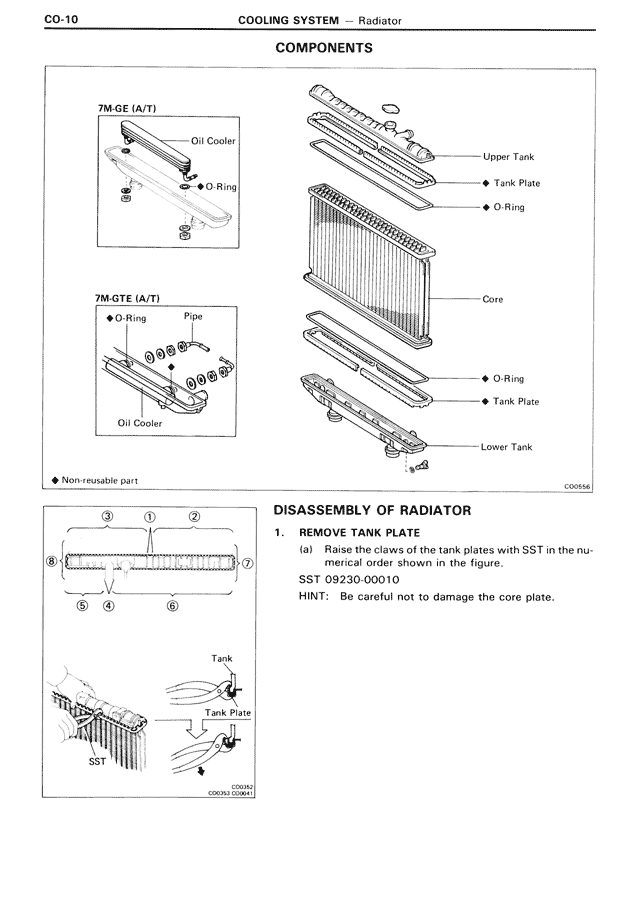

COMPONENTS 7M-GE (A/T) Oil Cooler ♦ O-Ring 7M-GTE (E/T) ♦ O-Ring Pipe Oil Cooler Upper Tank ♦ Tank Plate ♦ O-Ring Core ♦ O-Ring ♦ Tank Plate Lower Tank ♦ Non-reusable part DISASSEMBLY OF RADIATOR 1. REMOVE TANK PLATE (a) Raise the claws of the tank plates with SST in the numerical order shown in the figure. SST 09230-00010 HINT: Be careful not to damage the core plate. Tank Tank Plate SST
