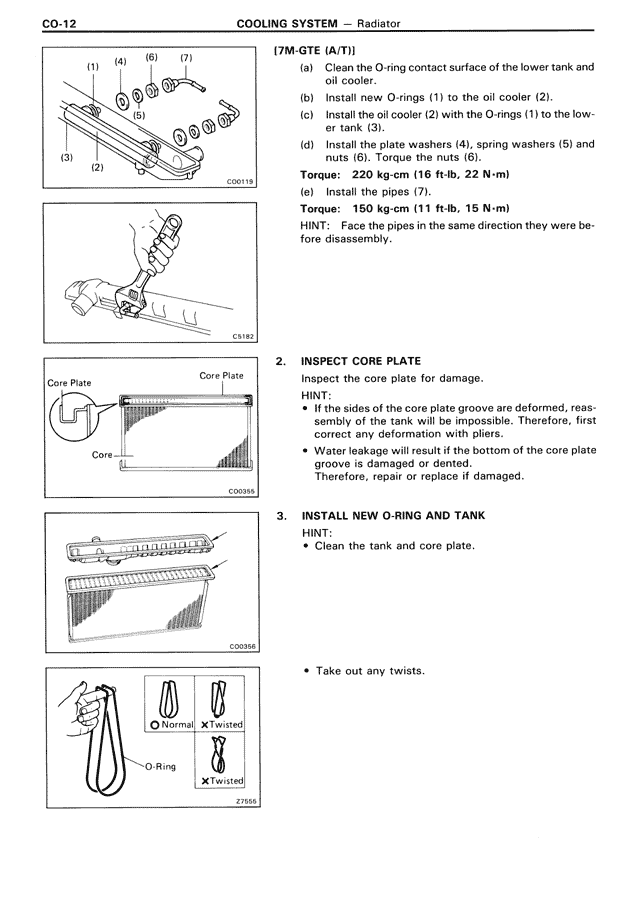

CO-12
COOLING SYSTEM — Radiator
[7M-GTE (A/T)]
(a) Clean the O-ring contact surface of the lower tank and oil cooler.
(b) Install new O-rings (1) to the oil cooler (2).
(c) Install the oil cooler (2) with the O-rings (1) to the lower tank (3).
(d) Install the plate washers (4), spring washers (5) and nuts (6). Torque the nuts (6).
Torque: 220 kg·cm (16 ft·lb, 22 N·m)
(e) Install the pipes (7).
Torque: 150 kg·cm (11 ft·lb, 15 N·m)
HINT: Face the pipes in the same direction they were before disassembly.
2. INSPECT CORE PLATE
Inspect the core plate for damage.
HINT:
• If the sides of the core plate groove are deformed, reassembly of the tank will be impossible. Therefore, first correct any deformation with pliers.
• Water leakage will result if the bottom of the core plate groove is damaged or dented.
Therefore, repair or replace if damaged.
3. INSTALL NEW O-RING AND TANK
HINT:
• Clean the tank and core plate.
• Take out any twists.
