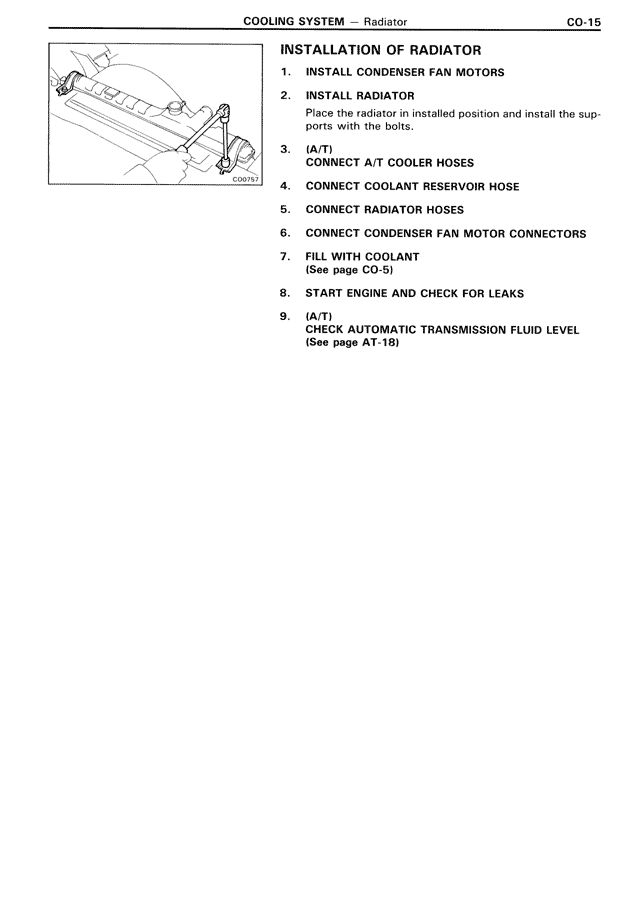

INSTALLATION OF RADIATOR 1. INSTALL CONDENSER FAN MOTORS 2. INSTALL RADIATOR Place the radiator in installed position and install the supports with the bolts. 3. (A/T) CONNECT A/T COOLER HOSES 4. CONNECT COOLANT RESERVOIR HOSE 5. CONNECT RADIATOR HOSES 6. CONNECT CONDENSER FAN MOTOR CONNECTORS 7. FILL WITH COOLANT (See page CO-5) 8. START ENGINE AND CHECK FOR LEAKS 9. (A/T) CHECK AUTOMATIC TRANSMISSION FLUID LEVEL (See page AT-18)
