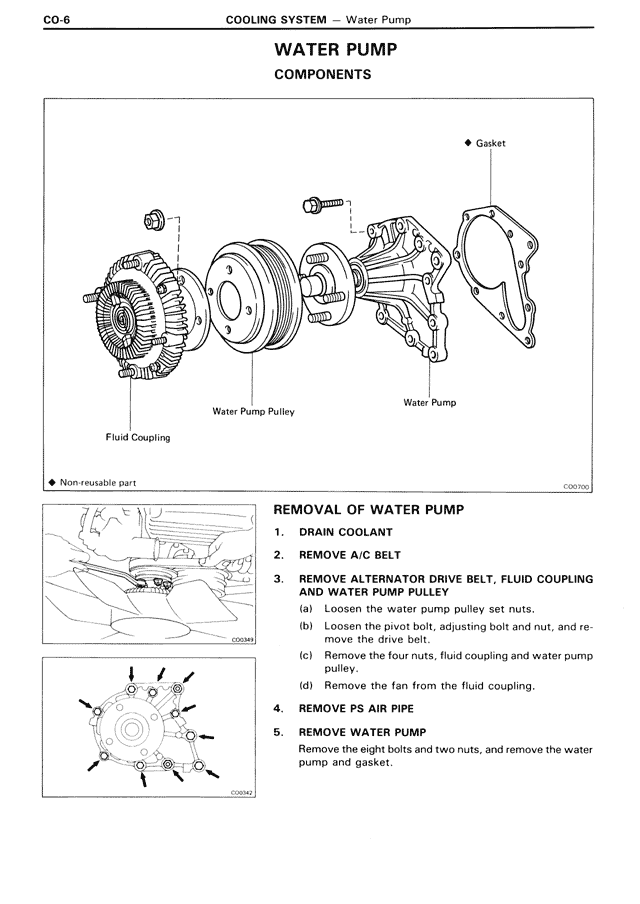

WATER PUMP
COMPONENTS
◆ Gasket
Water Pump Pulley
Water Pump
Fluid Coupling
◆ Non-reusable part
REMOVAL OF WATER PUMP
1. DRAIN COOLANT
2. REMOVE A/C BELT
3. REMOVE ALTERNATOR DRIVE BELT, FLUID COUPLING AND WATER PUMP PULLEY
(a) Loosen the water pump pulley set nuts.
(b) Loosen the pivot bolt, adjusting bolt and nut, and remove the drive belt.
(c) Remove the four nuts, fluid coupling and water pump pulley.
(d) Remove the fan from the fluid coupling.
4. REMOVE PS AIR PIPE
5. REMOVE WATER PUMP
Remove the eight bolts and two nuts, and remove the water pump and gasket.
