TOYOTA SUPRA (Cont'd)
[Diagram showing Cruise Control system with car icon showing "40 SET"]
Cruise Control

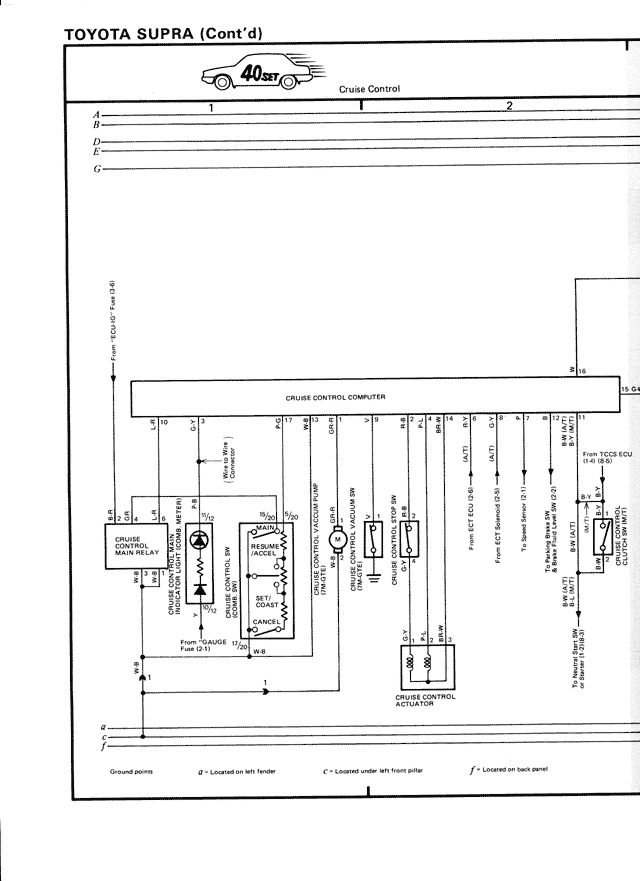

[Electrical wiring diagram showing connections between various components including:]
CRUISE CONTROL COMPUTER
From STOP Fuse
CRUISE CONTROL MAIN SWITCH
MAIN INDICATOR LIGHT
RELAY
RESUME CIRCUIT OPENING RELAY
RESUME/COAST
SET/
DRIVE
CANCEL
DRIVER ACTUATOR CRUISE CONTROL
CRUISE CONTROL ACTUATOR
From TCCS ECU
From TCM
N/T Position SW (Park & Neutral)
A/T Control Relay
From SPD Sensor [EFI]
Vehicle Speed Sensor [ECT]
N/T Neutral Start SW [A/T]
From STOP LT SW (EFI) and Main TCCS ECU (TCCS)
Ground points
d = Located on left fender
e = Located under left front pillar
f = Located on back panel
