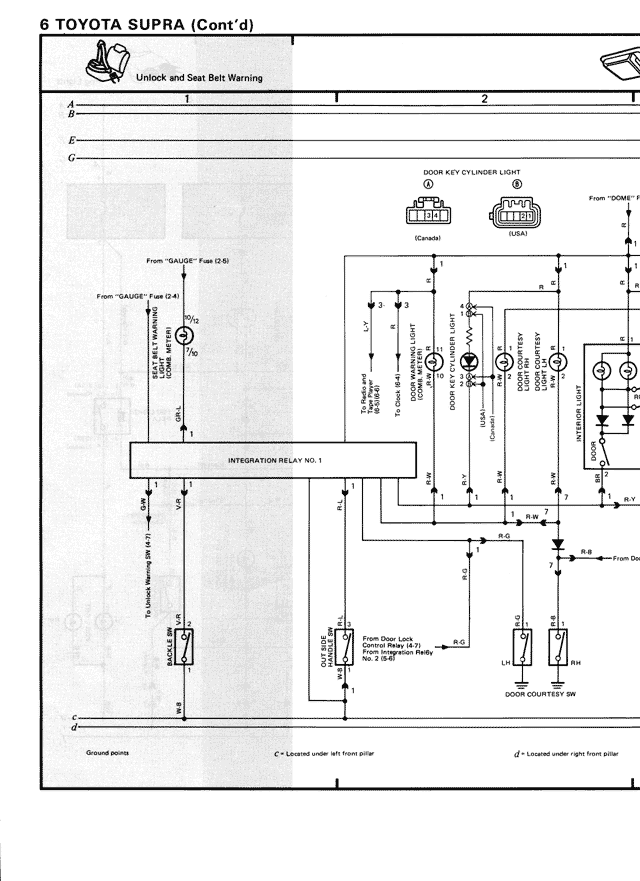

6 TOYOTA SUPRA (Cont'd) Unlock and Seat Belt Warning DOOR KEY CYLINDER LIGHT ① (Exist) ② (USA) From "DOME" F From "GAUGE" Fuse (2.5) From "GAUGE" Fuse (2.4) LOCK DRIVER DOOR WARNING SWITCH INTEGRATION RELAY NO. 1 GROUND 1 GROUND 2 DOOR LOCK SWITCH (RH) DOOR KEY CYLINDER LIGHT DOOR COURTESY SW From Door Lock Control Relay (2.7) And Door Lock (2.8) RELAY No. 3 (2.4) L1 R1 Ground points C = Legend under left front pillar d = Legend under right front pillar DOOR COURTESY SW
