D
/
Electrical Wiring Diagrams
28 / 35
p.029 →
−
100%
+

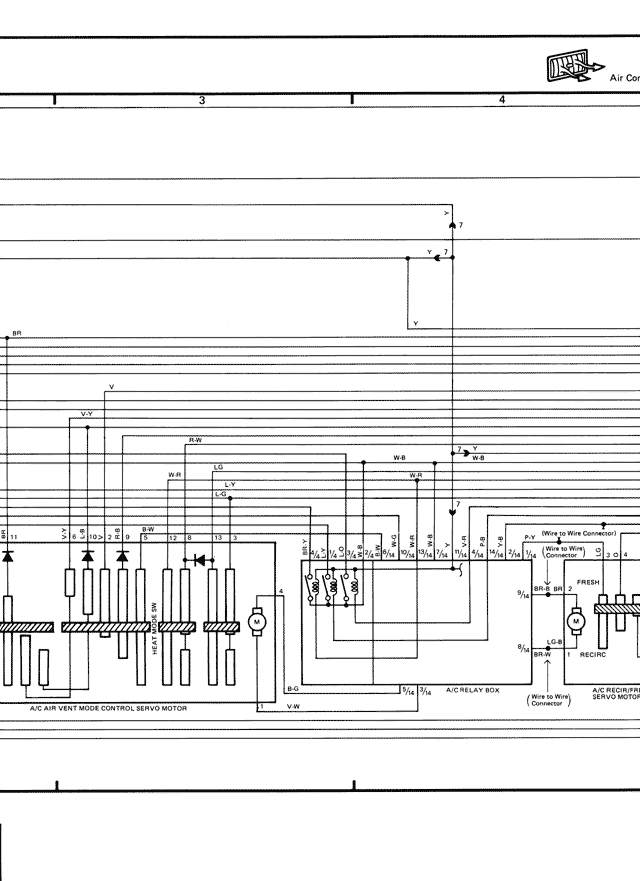

Air Conditioner 3 4 A/C AIR VENT MODE CONTROL SERVO MOTOR A/C RELAY BOX FRESH RECIRC A/C REGULATOR Connector
