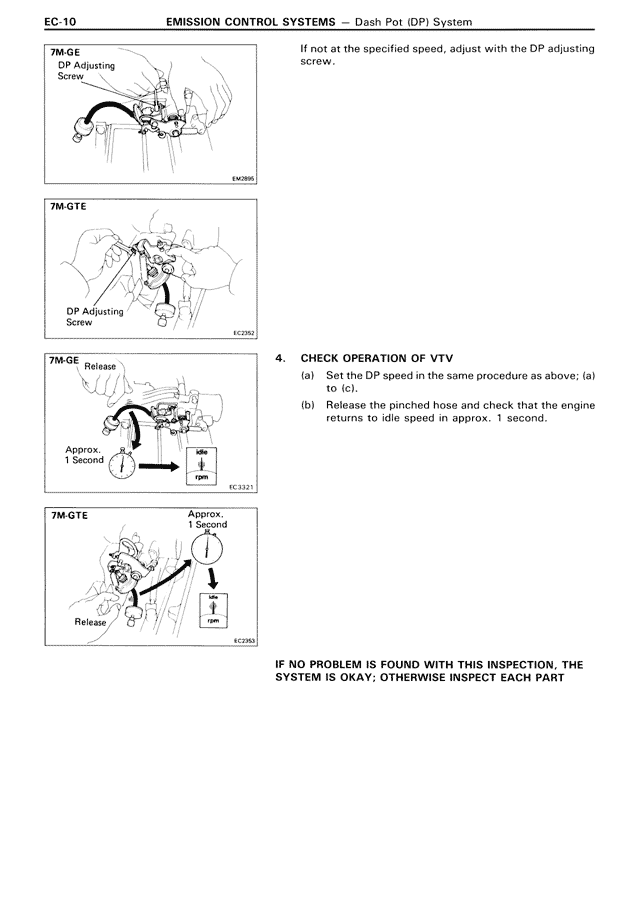

EC-10
EMISSION CONTROL SYSTEMS — Dash Pot (DP) System
7M-GE
DP Adjusting
Screw
If not at the specified speed, adjust with the DP adjusting
screw.
EK2855
7M-GTE
DP Adjusting
Screw
EC2952
7M-GE
Release
Approx.
1 Second
rpm
EC3221
7M-GTE
Approx.
1 Second
Release
rpm
EC2953
4. CHECK OPERATION OF VTV
(a) Set the DP speed in the same procedure as above; (a)
to (c).
(b) Release the pinched hose and check that the engine
returns to idle speed in approx. 1 second.
IF NO PROBLEM IS FOUND WITH THIS INSPECTION, THE
SYSTEM IS OKAY; OTHERWISE INSPECT EACH PART
