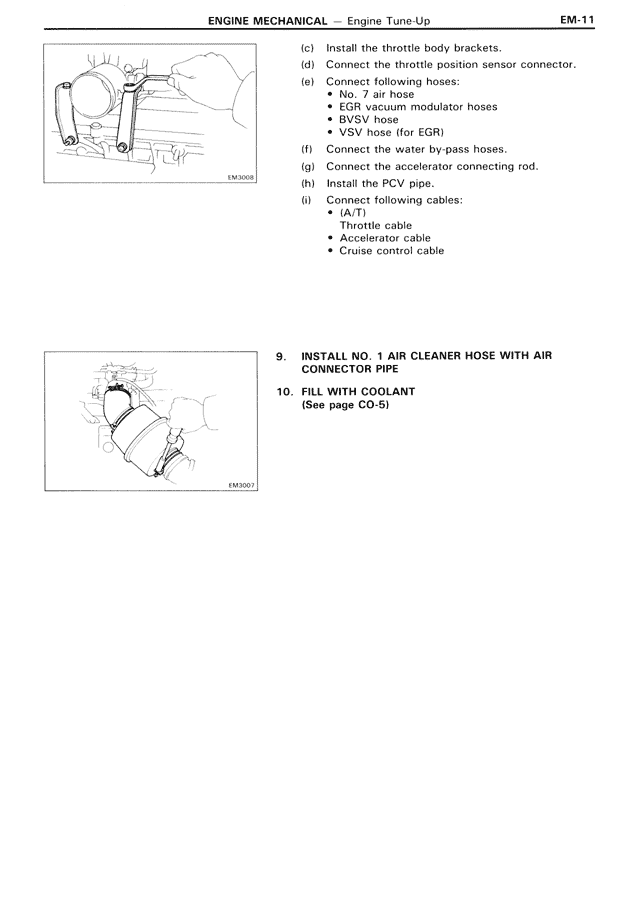

ENGINE MECHANICAL — Engine Tune-Up                                    EM-11

(c) Install the throttle body brackets.
(d) Connect the throttle position sensor connector.
(e) Connect following hoses:
    • No. 7 air hose
    • EGR vacuum modulator hoses
    • BVSV hose
    • VSV hose (for EGR)
(f) Connect the water by-pass hoses.
(g) Connect the accelerator connecting rod.
(h) Install the PCV pipe.
(i) Connect following cables:
    • (A/T)
      Throttle cable
    • Accelerator cable
    • Cruise control cable

9. INSTALL NO. 1 AIR CLEANER HOSE WITH AIR CONNECTOR PIPE

10. FILL WITH COOLANT
    (See page CO-5)
