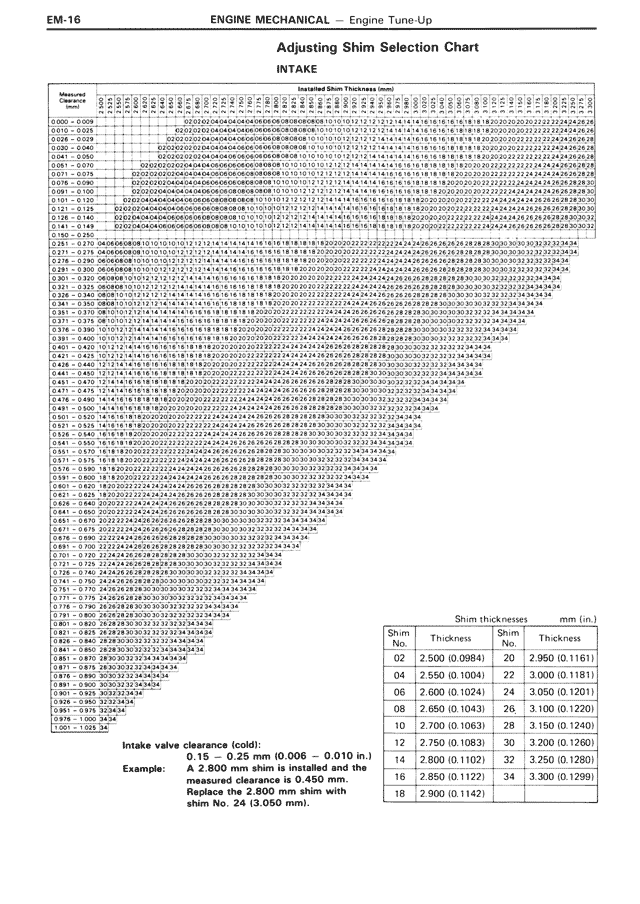

EM/Engine Mechanical — Adjusting Shim Selection Chart, page 16

Adjusting Shim Selection Chart
INTAKE

Intake valve clearance (cold):
0.15 — 0.25 mm (0.006 — 0.010 in.)
Example:
A 2.800 mm shim is installed and the
valve clearance measures 0.450 mm.
Replace the 2.800 mm shim with
shim No. 24 (3.050 mm).

[THIS IS TABLE: A large detailed shim selection chart with measured shim thickness values on the left (ranging from 0.000-0.025 to 1.000-1.025) and corresponding shim numbers across multiple columns. The table contains numerical values and shim recommendations.]

Shim thicknesses                mm (in.)
Shim
No.    Thickness    Shim     Thickness
                     No.
02     2.500 (0.0984)    20    2.950 (0.1161)
04     2.550 (0.1004)    22    3.000 (0.1181)
06     2.600 (0.1024)    24    3.050 (0.1201)
08     2.650 (0.1043)    26    3.100 (0.1220)
10     2.700 (0.1063)    28    3.150 (0.1240)
12     2.750 (0.1083)    30    3.200 (0.1260)
14     2.800 (0.1102)    32    3.250 (0.1280)
16     2.850 (0.1122)    34    3.300 (0.1299)
18     2.900 (0.1142)
