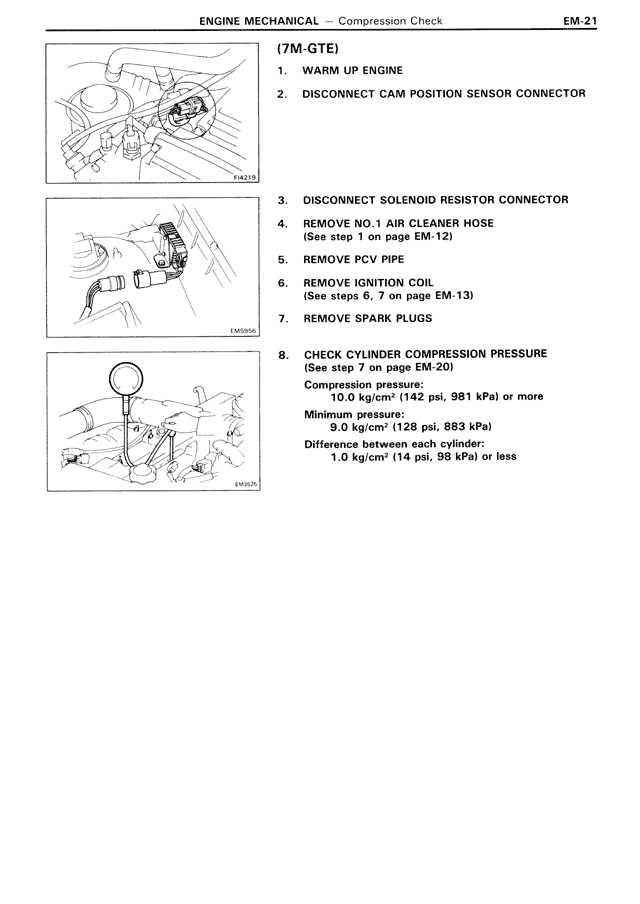

ENGINE MECHANICAL — Compression Check

EM-21

(7M-GTE)

1. WARM UP ENGINE

2. DISCONNECT CAM POSITION SENSOR CONNECTOR

3. DISCONNECT SOLENOID RESISTOR CONNECTOR

4. REMOVE NO.1 AIR CLEANER HOSE
(See step 1 on page EM-12)

5. REMOVE PCV PIPE

6. REMOVE IGNITION COIL
(See steps 6, 7 on page EM-13)

7. REMOVE SPARK PLUGS

8. CHECK CYLINDER COMPRESSION PRESSURE
(See step 7 on page EM-20)
Compression pressure:
10.0 kg/cm² (142 psi, 981 kPa) or more
Minimum pressure:
9.0 kg/cm² (128 psi, 883 kPa)
Difference between each cylinder:
1.0 kg/cm² (14 psi, 98 kPa) or less
