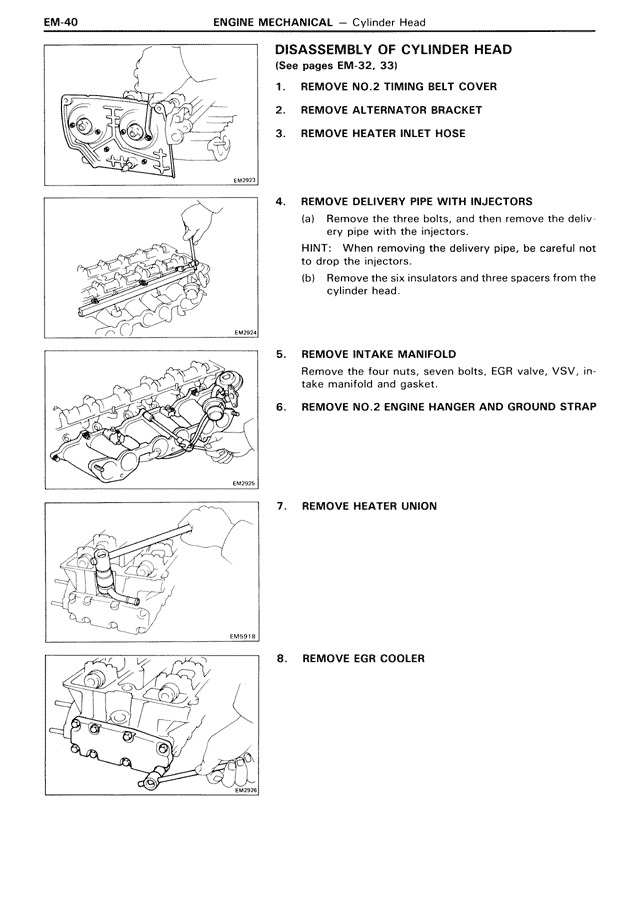

DISASSEMBLY OF CYLINDER HEAD (See pages EM-32, 33) 1. REMOVE NO.2 TIMING BELT COVER 2. REMOVE ALTERNATOR BRACKET 3. REMOVE HEATER INLET HOSE 4. REMOVE DELIVERY PIPE WITH INJECTORS (a) Remove the three bolts, and then remove the delivery pipe with the injectors. HINT: When removing the delivery pipe, be careful not to drop the injectors. (b) Remove the six insulators and three spacers from the cylinder head. 5. REMOVE INTAKE MANIFOLD Remove the four nuts, seven bolts, EGR valve, VSV, intake manifold and gasket. 6. REMOVE NO.2 ENGINE HANGER AND GROUND STRAP 7. REMOVE HEATER UNION 8. REMOVE EGR COOLER
