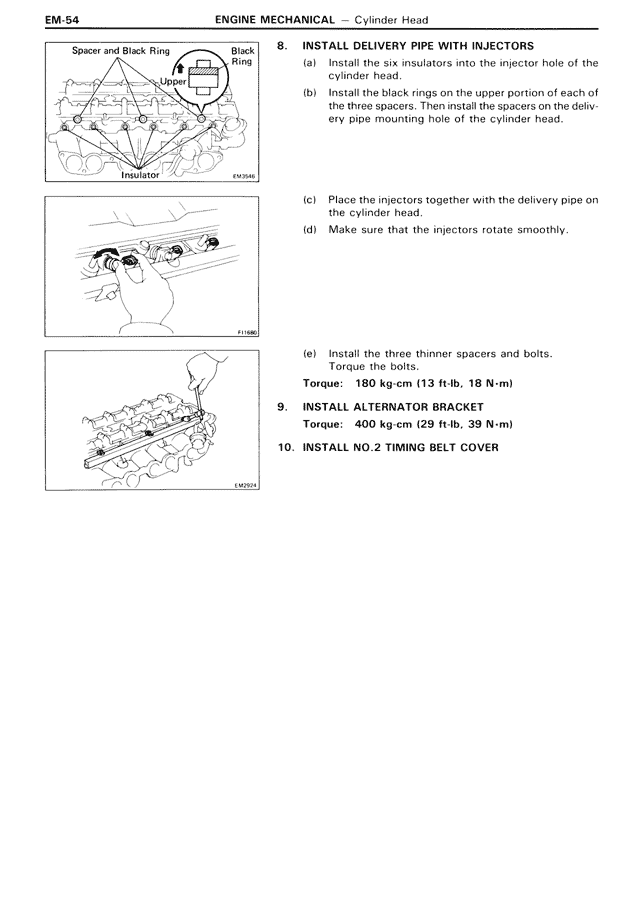

EM-54 ENGINE MECHANICAL — Cylinder Head Spacer and Black Ring Black Ring Insulator EM25A 8. INSTALL DELIVERY PIPE WITH INJECTORS (a) Install the six insulators into the injector hole of the cylinder head. (b) Install the black rings on the upper portion of each of the three spacers. Then install the spacers on the delivery pipe mounting hole of the cylinder head. F1189C (c) Place the injectors together with the delivery pipe on the cylinder head. (d) Make sure that the injectors rotate smoothly. EM26A (e) Install the three thinner spacers and bolts. Torque the bolts. Torque: 180 kg-cm (13 ft-lb, 18 N-m) 9. INSTALL ALTERNATOR BRACKET Torque: 400 kg-cm (29 ft-lb, 39 N-m) 10. INSTALL NO.2 TIMING BELT COVER
