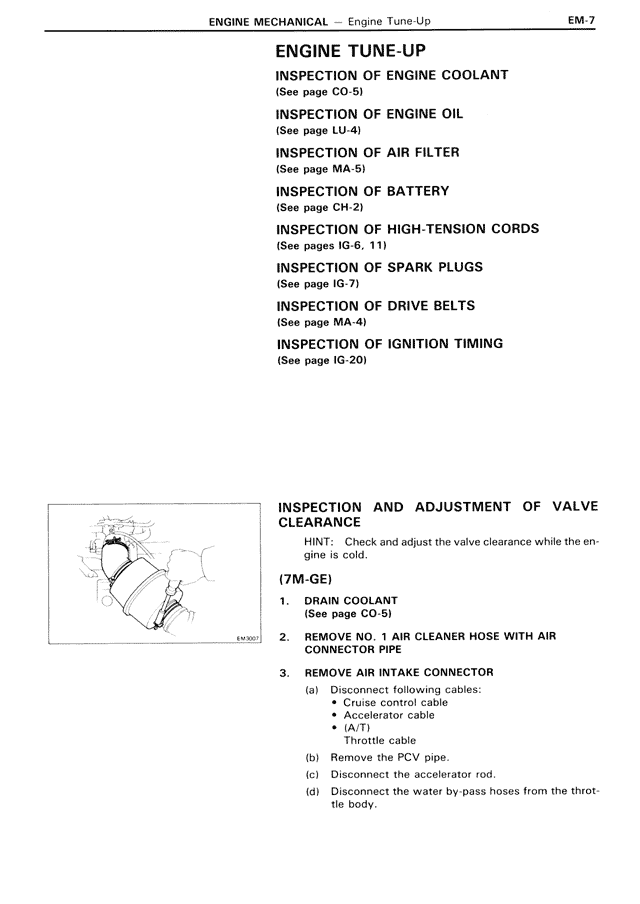

EM/Engine Mechanical — Engine Tune-Up, page 7

ENGINE TUNE-UP

INSPECTION OF ENGINE COOLANT
(See page CO-5)

INSPECTION OF ENGINE OIL
(See page LU-4)

INSPECTION OF AIR FILTER
(See page MA-5)

INSPECTION OF BATTERY
(See page CH-2)

INSPECTION OF HIGH-TENSION CORDS
(See pages IG-6, 11)

INSPECTION OF SPARK PLUGS
(See page IG-7)

INSPECTION OF DRIVE BELTS
(See page MA-4)

INSPECTION OF IGNITION TIMING
(See page IG-20)

INSPECTION AND ADJUSTMENT OF VALVE CLEARANCE

HINT: Check and adjust the valve clearance while the engine is cold.

(7M-GE)

1. DRAIN COOLANT
(See page CO-5)

2. REMOVE NO. 1 AIR CLEANER HOSE WITH AIR CONNECTOR PIPE

3. REMOVE AIR INTAKE CONNECTOR
(a) Disconnect following cables:
• Cruise control cable
• Accelerator cable
• (A/T)
Throttle cable
(b) Remove the PCV pipe.
(c) Disconnect the accelerator rod.
(d) Disconnect the water by-pass hoses from the throttle body.
