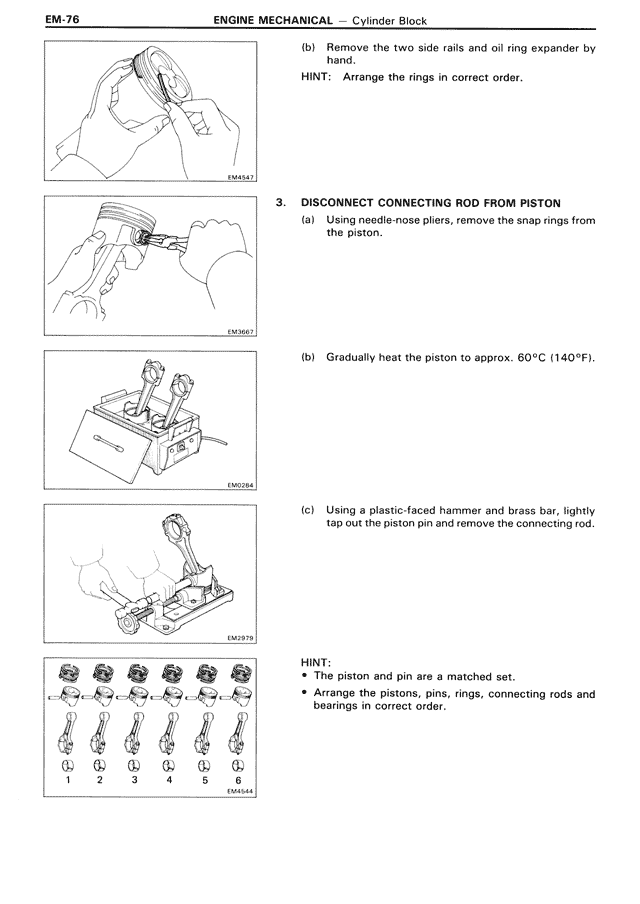

EM-76 ENGINE MECHANICAL — Cylinder Block
(b) Remove the two side rails and oil ring expander by hand.
HINT: Arrange the rings in correct order.
3. DISCONNECT CONNECTING ROD FROM PISTON
(a) Using needle-nose pliers, remove snap rings from the piston.
(b) Gradually heat the piston to approx. 60°C (140°F).
(c) Using a plastic-faced hammer and brass bar, lightly tap out the piston pin and remove the connecting rod.
HINT:
• The piston and pin are a matched set.
• Arrange the pistons, pins, rings, connecting rods and bearings in correct order.
