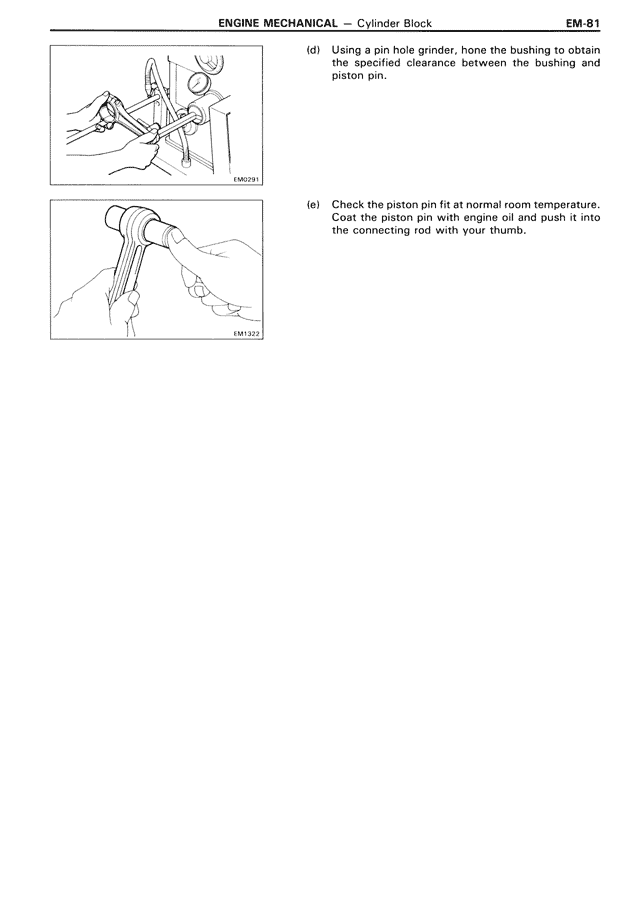

ENGINE MECHANICAL — Cylinder Block EM-81 (d) Using a pin hole grinder, hone the bushing to obtain the specified clearance between the bushing and piston pin. (e) Check the piston pin fit at normal room temperature. Coat the piston pin with engine oil and push it into the connecting rod with your thumb. EM0281 EM1322
