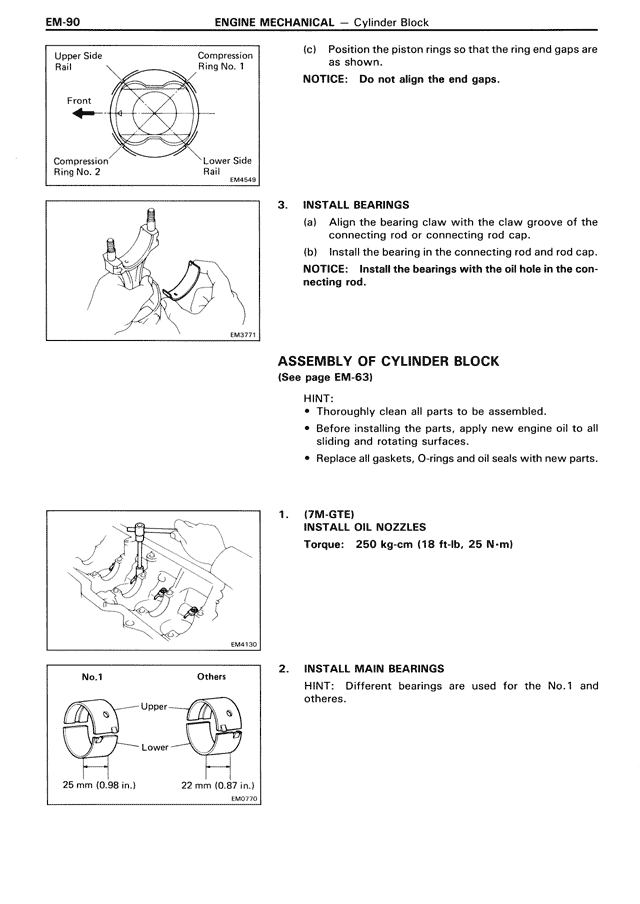

EM-90
ENGINE MECHANICAL — Cylinder Block
Upper Side
Rail
Compression
Ring No. 1
Front
Compression
Ring No. 2
Lower Side
Rail
EM4543
EM4771
(c) Position the piston rings so that the ring end gaps are as shown.
NOTICE: Do not align the end gaps.
3. INSTALL BEARINGS
(a) Align the bearing claw with the claw groove of the connecting rod or connecting rod cap.
(b) Install the bearing in the connecting rod and rod cap.
NOTICE: Install the bearings with the oil hole in the connecting rod.
ASSEMBLY OF CYLINDER BLOCK
(See page EM-63)
HINT:
• Thoroughly clean all parts to be assembled.
• Before installing the parts, apply new engine oil to all sliding and rotating surfaces.
• Replace all gaskets, O-rings and oil seals with new parts.
1. (7M-GTE)
INSTALL OIL SPRAY NOZZLES
Torque: 250 kg-cm (18 ft-lb, 25 N-m)
EM4130
No.1
Others
Upper
Lower
25 mm (0.98 in.)
22 mm (0.87 in.)
EM0770
2. INSTALL MAIN BEARINGS
HINT: Different bearings are used for the No. 1 and otheres.
