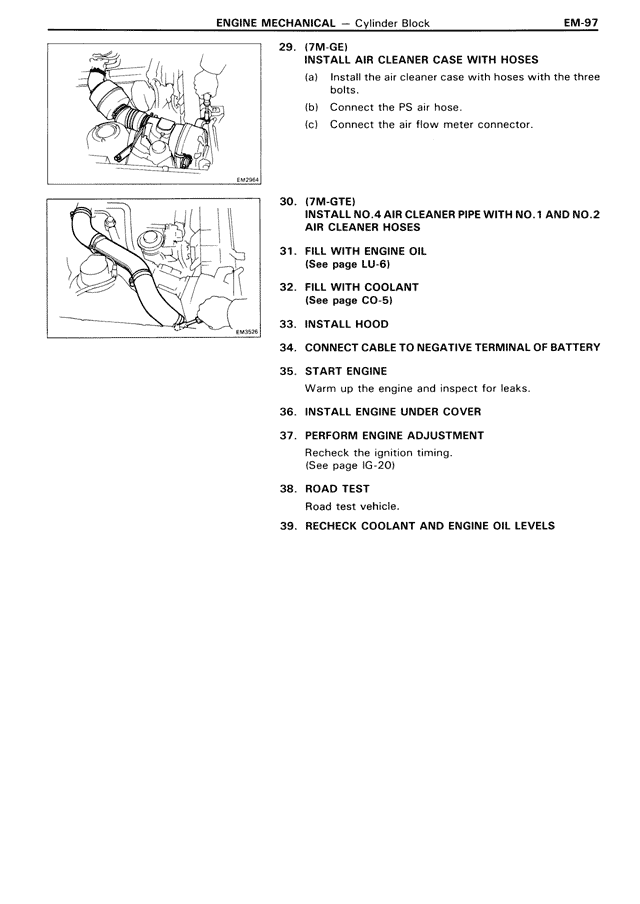

29. (7M-GE)
INSTALL AIR CLEANER CASE WITH HOSES
(a) Install the air cleaner case with hoses with the three bolts.
(b) Connect the PS air hose.
(c) Connect the air flow meter connector.
30. (7M-GTE)
INSTALL NO.4 AIR CLEANER PIPE WITH NO.1 AND NO.2 AIR CLEANER HOSES
31. FILL WITH ENGINE OIL
(See page LU-6)
32. FILL WITH COOLANT
(See page CO-12)
33. INSTALL HOOD
34. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
35. START ENGINE
Warm up the engine and inspect for leaks.
36. INSTALL ENGINE UNDER COVER
37. PERFORM ENGINE ADJUSTMENT
Recheck the ignition timing.
(See page IG-20)
38. ROAD TEST
Road test vehicle.
39. RECHECK COOLANT AND ENGINE OIL LEVELS
