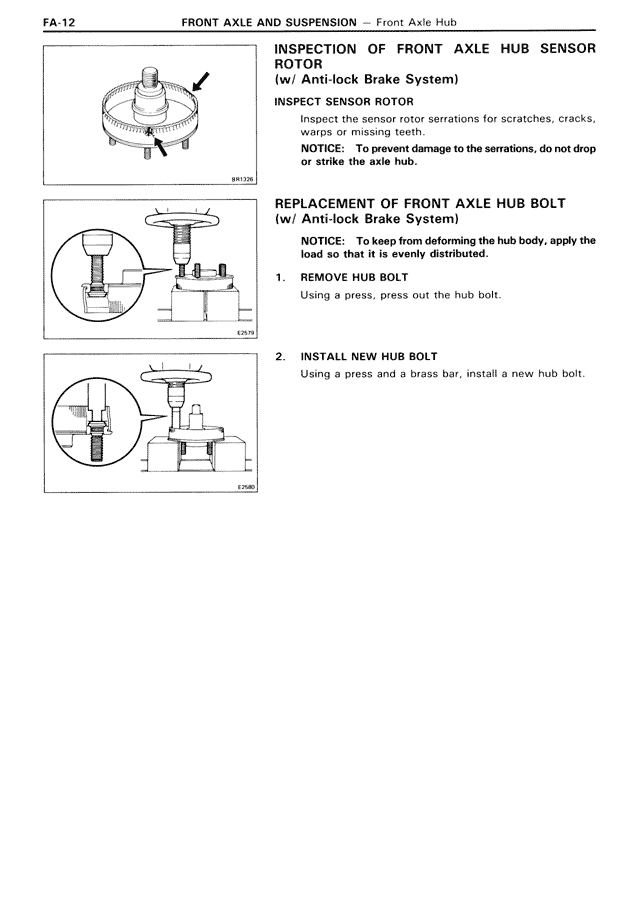

FA-12
FRONT AXLE AND SUSPENSION — Front Axle Hub
INSPECTION OF FRONT AXLE HUB SENSOR ROTOR
(w/ Anti-lock Brake System)
INSPECT SENSOR ROTOR
Inspect the sensor rotor serrations for scratches, cracks, warps or missing teeth.
NOTICE: To prevent damage to the serrations, do not drop or strike the axle hub.
REPLACEMENT OF FRONT AXLE HUB BOLT
(w/ Anti-lock Brake System)
NOTICE: To keep from deforming the hub body, apply the load so that it is evenly distributed.
1. REMOVE HUB BOLT
Using a press, press out the hub bolt.
2. INSTALL NEW HUB BOLT
Using a press and a brass bar, install a new hub bolt.
