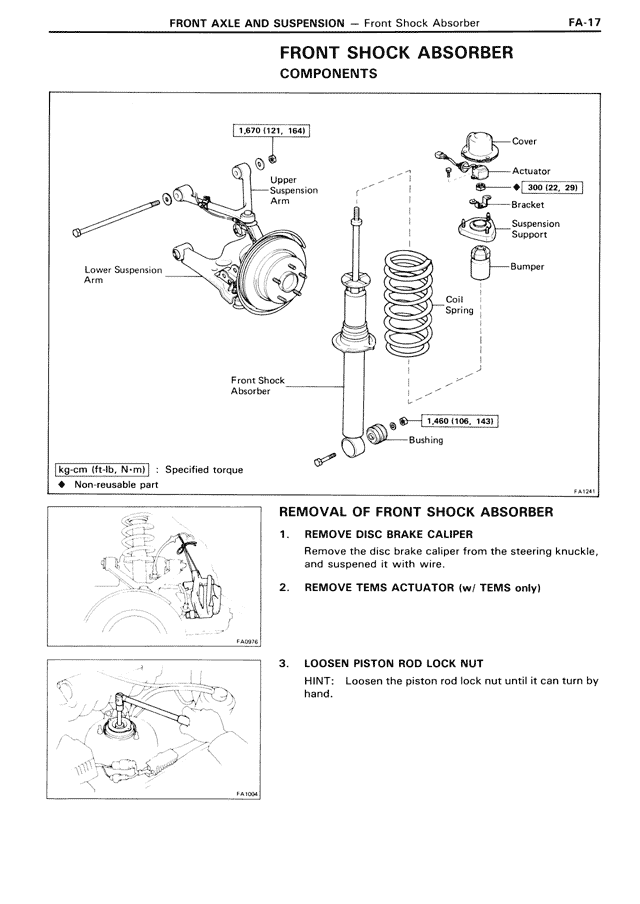

FRONT SHOCK ABSORBER
COMPONENTS
1,670 [121, 168]
Cover
Actuator
300 [22, 28]
Bracket
Suspension
Support
Upper
Suspension
Arm
Lower Suspension
Arm
Bumper
Coil
Spring
Front Shock
Absorber
1,460 [106, 143]
Bushing
kg-cm [ft-lb, N-m] : Specified torque
◆ Non-reusable part
FA12A1
REMOVAL OF FRONT SHOCK ABSORBER
1. REMOVE DISC BRAKE CALIPER
Remove the disc brake caliper from the steering knuckle,
and suspend it with wire.
2. REMOVE TEMS ACTUATOR (w/ TEMS only)
FA02YL
3. LOOSEN PISTON ROD LOCK NUT
HINT: Loosen the piston rod lock nut until it can turn by
hand.
FA10A5
