Yes

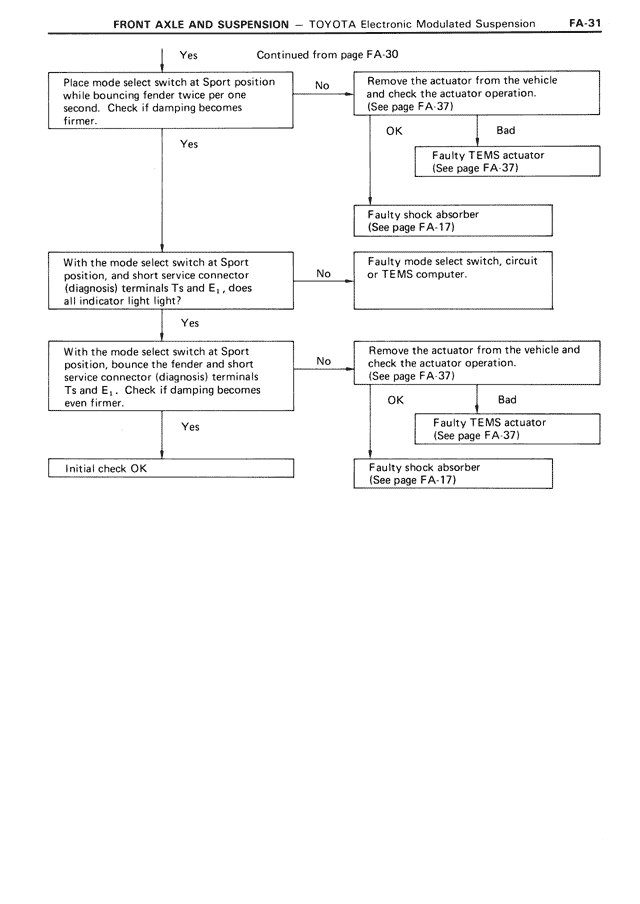

Continued from page FA-30
Place mode select switch at Sport position while bouncing fender twice per one second. Check if damping becomes firmer.
No
Remove the actuator from the vehicle and check the actuator operation. (See page FA-37)
Yes
OK
Bad
Faulty TEMS actuator (See page FA-37)
Faulty shock absorber (See page FA-17)
With the mode select switch at Sport position, and short service connector (diagnosis) terminals Ts and E1, does all indicator light light?
No
Faulty mode select switch, circuit or TEMS computer.
Yes
With the mode select switch at Sport position, bounce the fender and short service connector (diagnosis) terminals Ts and E1. Check if damping becomes even firmer.
No
Remove the actuator from the vehicle and check the actuator operation. (See page FA-37)
Yes
OK
Bad
Faulty TEMS actuator (See page FA-37)
Initial check OK
Faulty shock absorber (See page FA-17)
