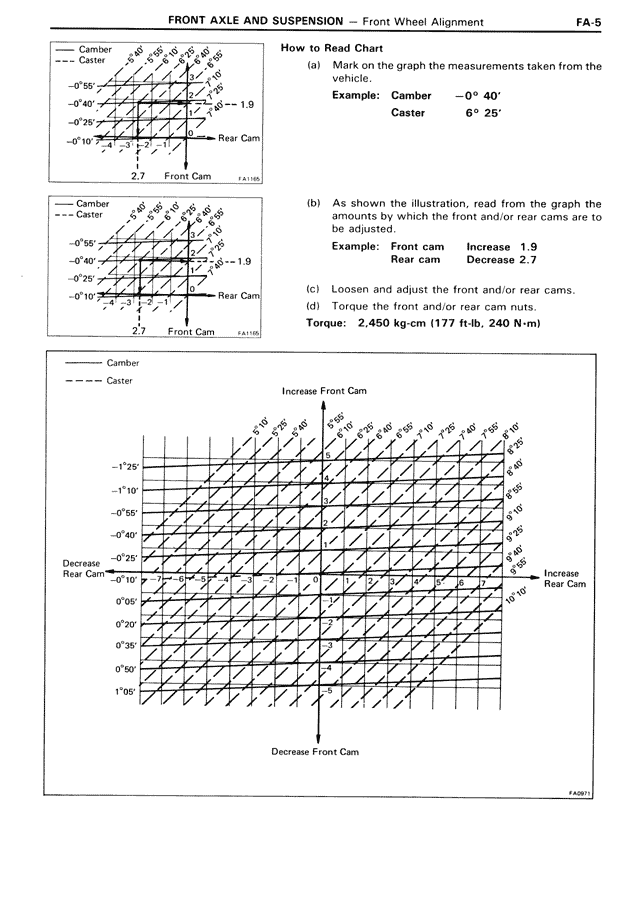

FRONT AXLE AND SUSPENSION — Front Wheel Alignment
FA-5
[Diagram 1 - Camber/Caster grid chart showing diagonal lines with measurements]
Camber
Caster
-0°55'
-0°40'
-0°25'
-0°10'
2.7 Front Cam
Rear Cam
1.9
FA5146
How to Read Chart
(a) Mark on the graph the measurements taken from the vehicle.
Example: Camber -0° 40'
Caster 6° 25'
(b) As shown the illustration, read from the graph the amounts by which the front and/or rear cams are to be adjusted.
Example: Front cam Increase 1.9
Rear cam Decrease 2.7
(c) Loosen and adjust the front and/or rear cams.
(d) Torque the front and/or rear cam nuts.
Torque: 2,450 kg-cm {177 ft-lb, 240 N-m}
[Diagram 2 - Similar Camber/Caster grid chart]
Camber
Caster
-0°55'
-0°40'
-0°25'
-0°10'
2.7 Front Cam
Rear Cam
1.9
FA5146
[Diagram 3 - Large adjustment chart]
Camber
Caster
Increase Front Cam
-1°25'
-1°10'
-0°55'
-0°40'
Decrease
Rear Cam
-0°25'
-0°10'
0°05'
0°20'
0°35'
0°50'
1°05'
Increase
Rear Cam
Decrease Front Cam
FA5011
