FI-108                    EFI SYSTEM — Electronic Control System

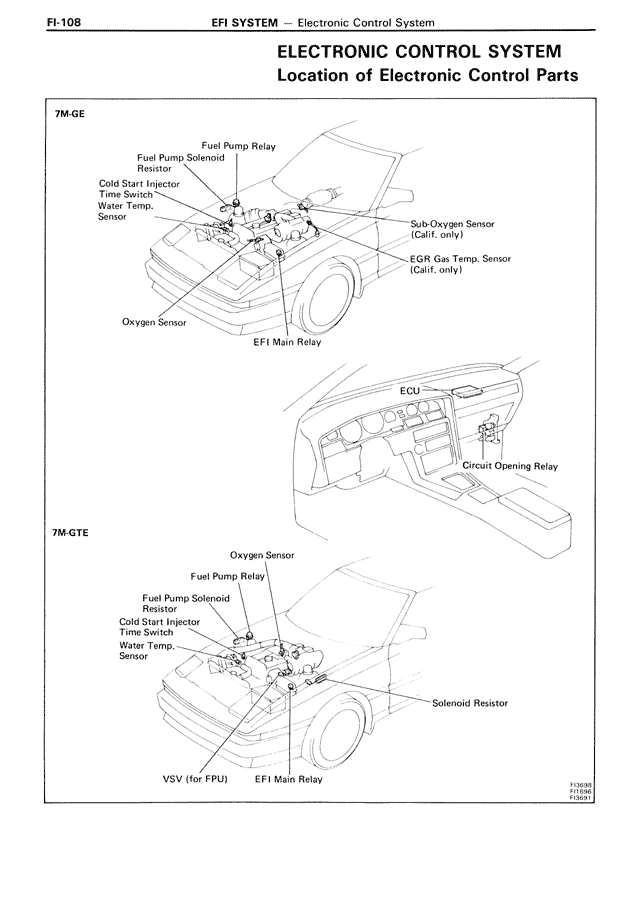

ELECTRONIC CONTROL SYSTEM
Location of Electronic Control Parts

7M-GE

Fuel Pump Relay
Fuel Pump Solenoid
Resistor
Cold Start Injector
Time Switch
Water Temp.
Sensor

Sub-Oxygen Sensor
(Calif. only)

EGR Gas Temp. Sensor
(Calif. only)

Oxygen Sensor

EFI Main Relay

ECU

Circuit Opening Relay

7M-GTE

Oxygen Sensor

Fuel Pump Relay

Fuel Pump Solenoid
Resistor
Cold Start Injector
Time Switch
Water Temp.
Sensor

Solenoid Resistor

VSV (for FPU)

EFI Main Relay
