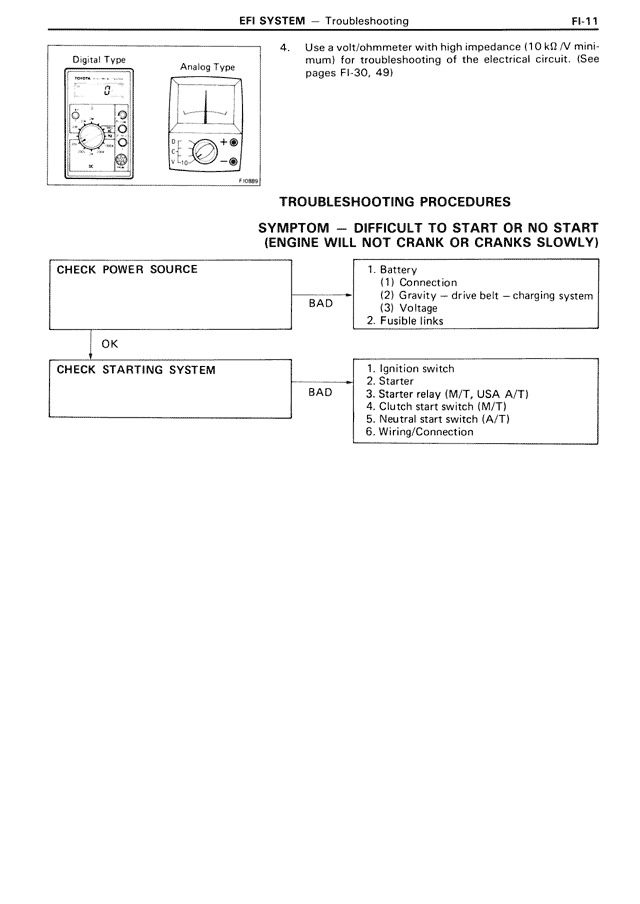

EFI SYSTEM — Troubleshooting
Digital Type
Analog Type
4. Use a volt/ohmmeter with high impedance (10 kΩ V mini-mum) for troubleshooting of the electrical circuit. (See pages FI-30, 49)
TROUBLESHOOTING PROCEDURES
SYMPTOM — DIFFICULT TO START OR NO START
(ENGINE WILL NOT CRANK OR CRANKS SLOWLY)
CHECK POWER SOURCE
BAD
1. Battery
(1) Connection
(2) Gravity — drive belt — charging system
(3) Voltage
2. Fusible links
OK
CHECK STARTING SYSTEM
BAD
1. Ignition switch
2. Starter
3. Starter relay (M/T, USA A/T)
4. Clutch start switch (M/T)
5. Neutral start switch (A/T)
6. Wiring/Connection
