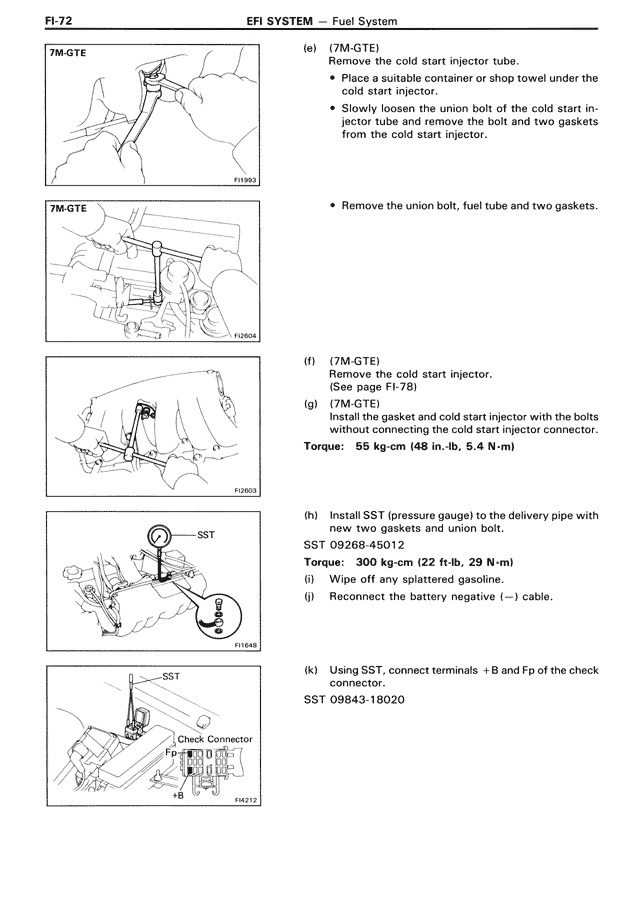

FI-72
EFI SYSTEM — Fuel System
7M-GTE
(e) (7M-GTE)
Remove the cold start injector tube.
• Place a suitable container or shop towel under the cold start injector.
• Slowly loosen the union bolt of the cold start injector tube and remove the bolt and two gaskets from the cold start injector.
7M-GTE
• Remove the union bolt, fuel tube and two gaskets.
(f) (7M-GTE)
Remove the cold start injector.
(See page FI-78)
(g) (7M-GTE)
Install the gasket and cold start injector with the bolts without connecting the cold start injector connector.
Torque: 55 kg·cm (48 in. lb, 5.4 N·m)
(h) Install SST (pressure gauge) to the delivery pipe with new two gaskets and union bolt.
SST 09268-45012
Torque: 300 kg·cm (22 ft·lb, 29 N·m)
(i) Wipe off any splattered gasoline.
(j) Reconnect the battery negative (—) cable.
SST
(k) Using SST, connect terminals +B and Fp of the check connector.
SST 09843-18020
SST
Check Connector
+B
