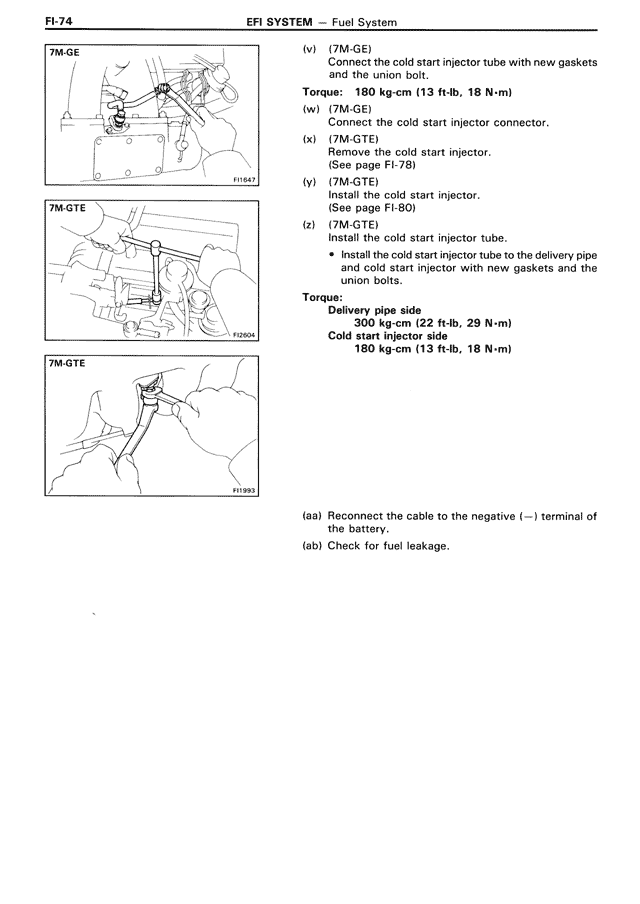

FI-74 EFI SYSTEM — Fuel System
7M-GE
[Diagram showing engine compartment view]
F11647
7M-GTE
[Diagram showing engine compartment view]
F11953
7M-GTE
[Diagram showing detail view]
F11953
(v) (7M-GE)
Connect the cold start injector tube with new gaskets and the union bolt.
Torque: 180 kg-cm (13 ft-lb, 18 N-m)
(w) (7M-GE)
Connect the cold start injector connector.
(x) (7M-GTE)
Remove the cold start injector.
(See page FI-78)
(y) (7M-GTE)
Install the cold start injector.
(See page FI-80)
(z) (7M-GTE)
Install the cold start injector tube.
• Install the cold start injector tube to the delivery pipe and cold start injector with new gaskets and the union bolts.
Torque:
Delivery pipe side
300 kg-cm (22 ft-lb, 29 N-m)
Cold start injector side
180 kg-cm (13 ft-lb, 18 N-m)
(aa) Reconnect the cable to the negative (—) terminal of the battery.
(ab) Check for fuel leakage.
