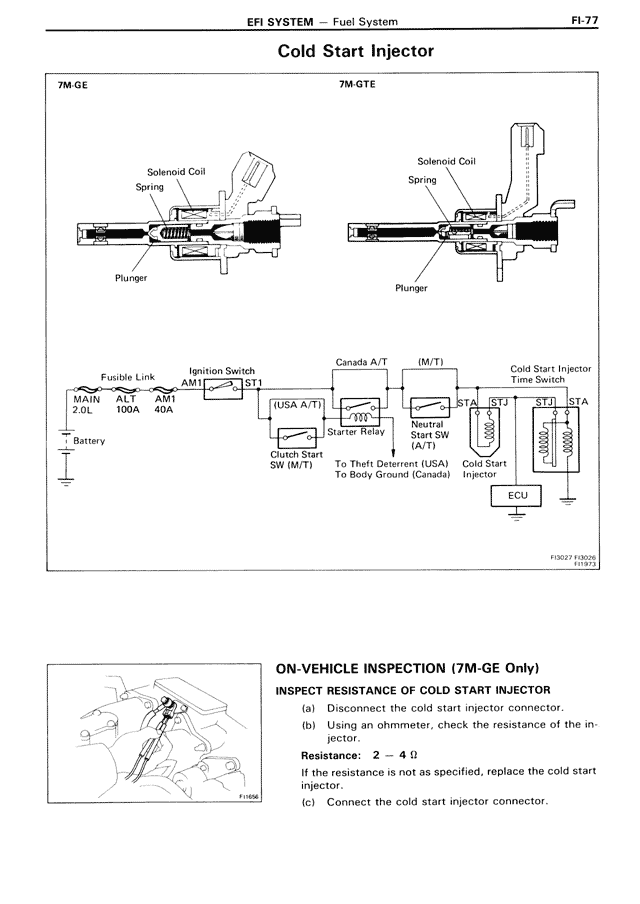

EFI SYSTEM — Fuel System FI-77
Cold Start Injector
7M·GE 7M·GTE
[Diagram showing two cold start injector cross-sections with labeled parts: Solenoid Coil, Spring, Plunger]
[Wiring diagram showing connections between:
Battery — MAIN 2.0L, ALT 40A, AM1 — Fusible Link
Ignition Switch (AM1, ST1)
[USA A/T] — Starter Relay
Canada A/T — [M/T]
Clutch Start SW (M/T) — To Body Ground (Canada)
Neutral Start SW (A/T)
To Theft Deterrent (USA)
Cold Start Injector
Cold Start Injector Time Switch (STA, ST1, STJ, STA)
ECU]
F10827·FA0526
FI18F21
[Diagram showing cold start injector location in engine]
ON-VEHICLE INSPECTION (7M-GE Only)
INSPECT RESISTANCE OF COLD START INJECTOR
(a) Disconnect the cold start injector connector.
(b) Using an ohmmeter, check the resistance of the injector.
Resistance: 2 — 4 Ω
If the resistance is not as specified, replace the cold start injector.
(c) Connect the cold start injector connector.
F1086
