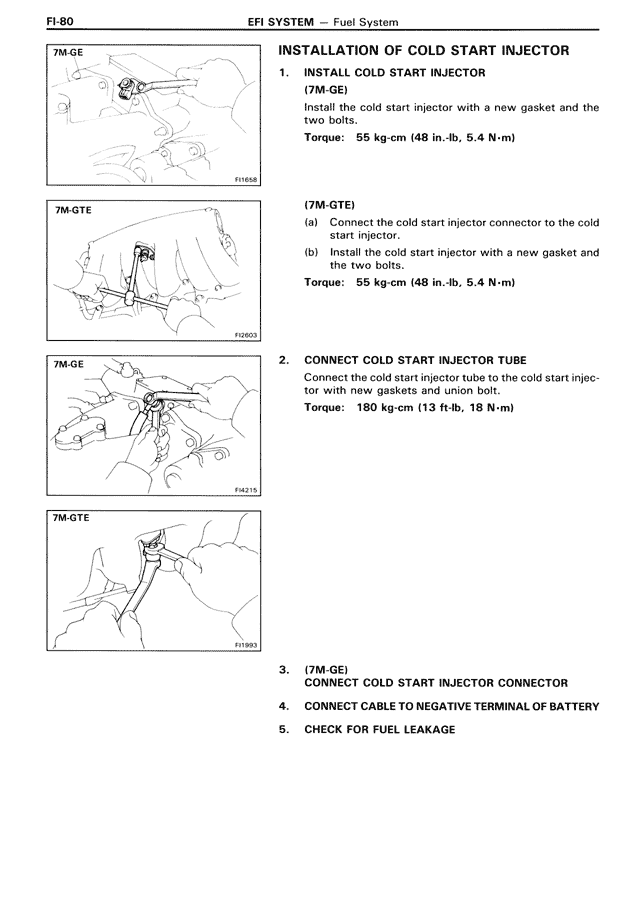

FI-80
EFI SYSTEM — Fuel System
7M-GE
F16668
7M-GTE
F16669
7M-GE
F42215
7M-GTE
F51963
INSTALLATION OF COLD START INJECTOR
1. INSTALL COLD START INJECTOR
(7M-GE)
Install the cold start injector with a new gasket and the
two bolts.
Torque: 55 kg·cm (48 in.·lb, 5.4 N·m)
(7M-GTE)
(a) Connect the cold start injector connector to the cold
start injector.
(b) Install the cold start injector with a new gasket and
the two bolts.
Torque: 55 kg·cm (48 in.·lb, 5.4 N·m)
2. CONNECT COLD START INJECTOR TUBE
Connect the cold start injector tube to the cold start injector with new gaskets and union bolt.
Torque: 180 kg·cm (13 ft·lb, 18 N·m)
3. (7M-GE)
CONNECT COLD START INJECTOR CONNECTOR
4. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
5. CHECK FOR FUEL LEAKAGE
