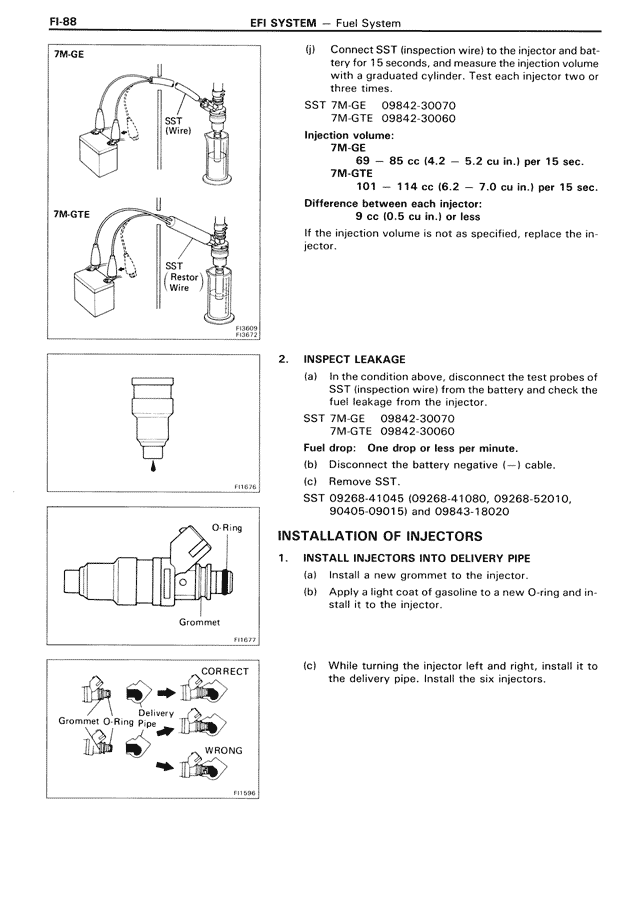

(j) Connect SST (inspection wire) to the injector and battery for 15 seconds, and measure the injection volume with a graduated cylinder. Test each injector two or three times.
SST 7M·GE 09842-30070
7M·GTE 09842-30060
Injection volume:
7M·GE
69 — 85 cc (4.2 — 5.2 cu in.) per 15 sec.
7M·GTE
101 — 114 cc (6.2 — 7.0 cu in.) per 15 sec.
Difference between each injector:
9 cc (0.5 cu in.) or less
If the injection volume is not as specified, replace the injector.
2. INSPECT LEAKAGE
(a) In the condition above, disconnect the test probes of SST (inspection wire) from the battery and check the fuel leakage from the injector.
SST 7M·GE 09842-30070
7M·GTE 09842-30060
Fuel drop: One drop or less per minute.
(b) Disconnect the battery negative (—) cable.
(c) Remove SST.
SST 09268-41045 (09268-41080, 09268-52010, 90405-09015) and 09843-18020
INSTALLATION OF INJECTORS
1. INSTALL INJECTORS INTO DELIVERY PIPE
(a) Install a new grommet to the injector.
(b) Apply a light coat of gasoline to a new O-ring and install it to the injector.
(c) While turning the injector left and right, install it to the delivery pipe. Install the six injectors.
