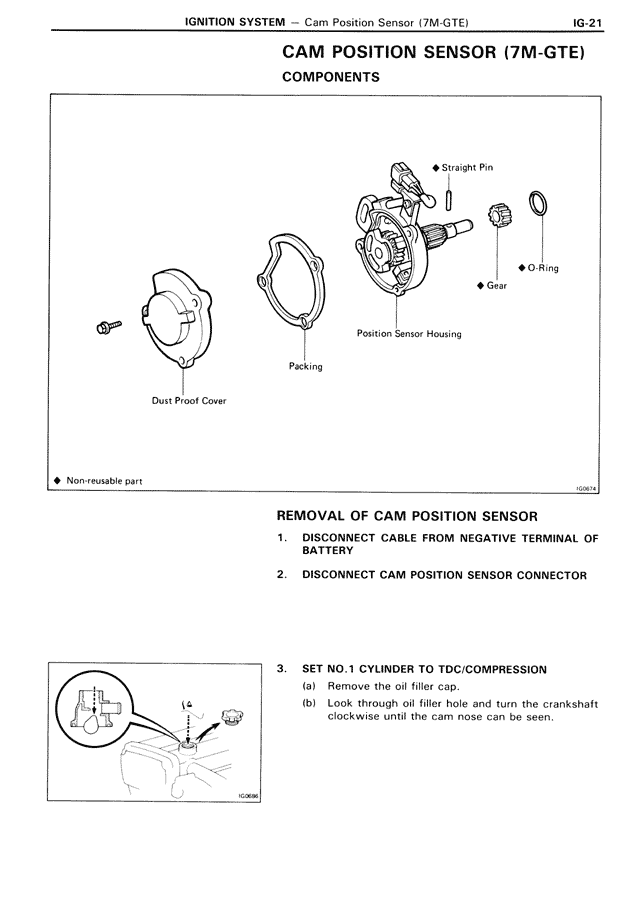

CAM POSITION SENSOR (7M-GTE) COMPONENTS ◆ Straight Pin ◆ O-Ring ◆ Gear Position Sensor Housing Packing Dust Proof Cover ◆ Non-reusable part REMOVAL OF CAM POSITION SENSOR 1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY 2. DISCONNECT CAM POSITION SENSOR CONNECTOR 3. SET NO.1 CYLINDER TO TDC/COMPRESSION (a) Remove the oil filler cap. (b) Look through oil filler hole and turn the crankshaft clockwise until the cam nose can be seen.
