IN-12 INTRODUCTION — Vehicle Lift and Support Locations

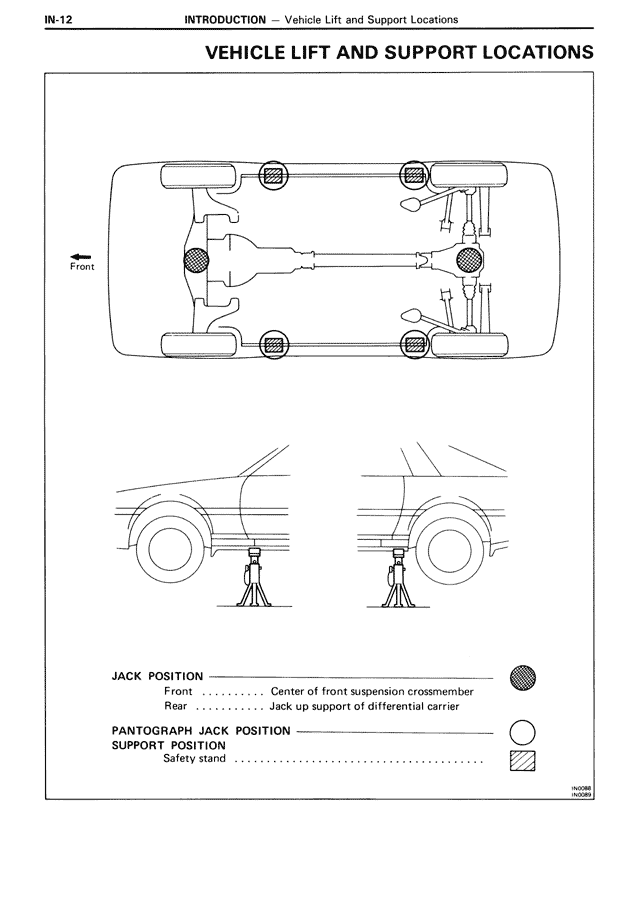

VEHICLE LIFT AND SUPPORT LOCATIONS
[DIAGRAM: Top-down view of vehicle showing lift points at all four corners with hatched circles indicating jack positions and hollow circles indicating pantograph jack positions]
Front
[DIAGRAM: Two side-view illustrations showing jack placement under vehicle - one at front wheel, one at rear wheel]
JACK POSITION
Front ........... Center of front suspension crossmember
Rear ............ Jack up support of differential carrier
PANTOGRAPH JACK POSITION
SUPPORT POSITION
Safety stand .........................................
[LEGEND showing three symbols:
- Hatched circle: JACK POSITION
- Hollow circle: PANTOGRAPH JACK POSITION
- Hatched pattern: Safety stand]
IN0088
