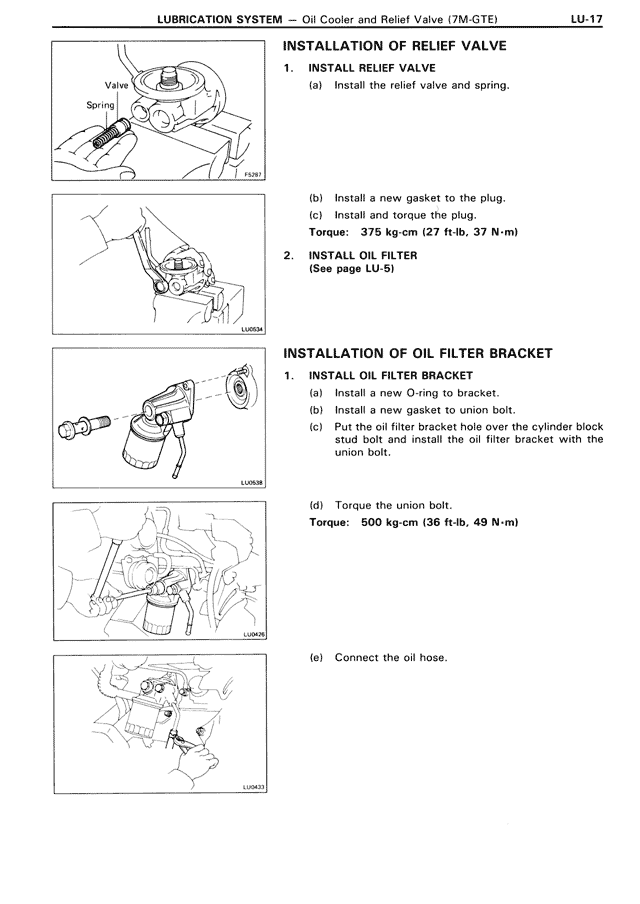

LUBRICATION SYSTEM — Oil Cooler and Relief Valve (7M-GTE) — MK3 Supra Lubrication System, page 17
100%
INSTALLATION OF RELIEF VALVE 1. INSTALL RELIEF VALVE (a) Install the relief valve and spring. (b) Install a new gasket to the plug. (c) Install and torque the plug. Torque: 375 kg·cm (27 ft·lb, 37 N·m) 2. INSTALL OIL FILTER (See page LU-5) INSTALLATION OF OIL FILTER BRACKET 1. INSTALL OIL FILTER BRACKET (a) Install a new O-ring to bracket. (b) Install a new gasket to the bolt. (c) Put the oil filter bracket hole over the cylinder block stud bolt and install the oil filter bracket with the union bolt. (d) Torque the union bolt. Torque: 500 kg·cm (36 ft·lb, 49 N·m) (e) Connect the oil hose.
