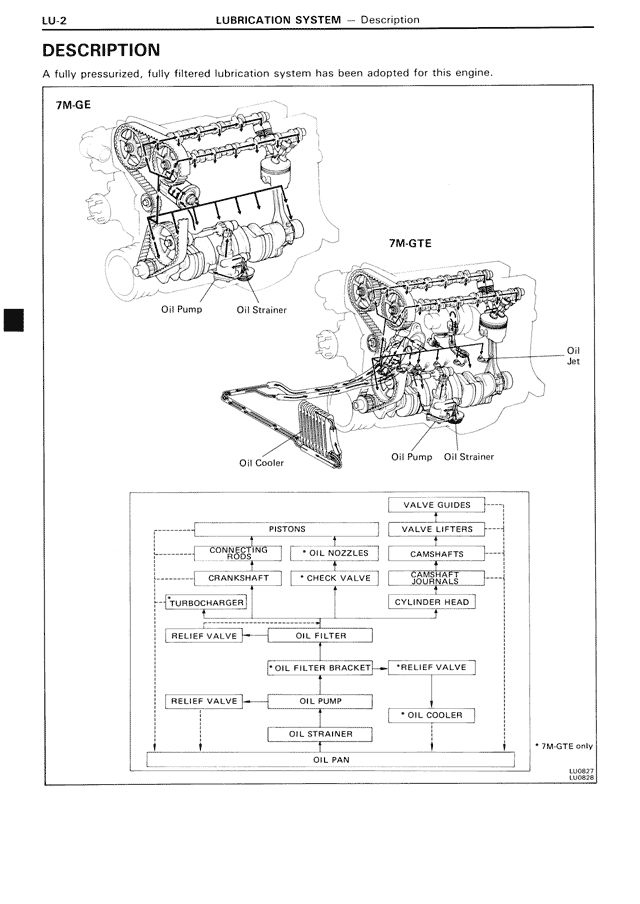

DESCRIPTION
A fully pressurized, fully filtered lubrication system has been adopted for this engine.
7M·GE
Oil Pump Oil Strainer
7M·GTE
Oil Jet
Oil Cooler Oil Pump Oil Strainer
VALVE GUIDES
PISTONS VALVE LIFTERS
CONNECTING • OIL NOZZLES CAMSHAFTS
ROD
CRANKSHAFT • CHECK VALVE CAMSHAFT
JOURNALS
TURBOCHARGER CYLINDER HEAD
RELIEF VALVE OIL FILTER
OIL FILTER BRACKET *RELIEF VALVE
RELIEF VALVE OIL PUMP
• OIL COOLER
OIL STRAINER
* 7M·GTE only
OIL PAN
LU0B12
LU0026
