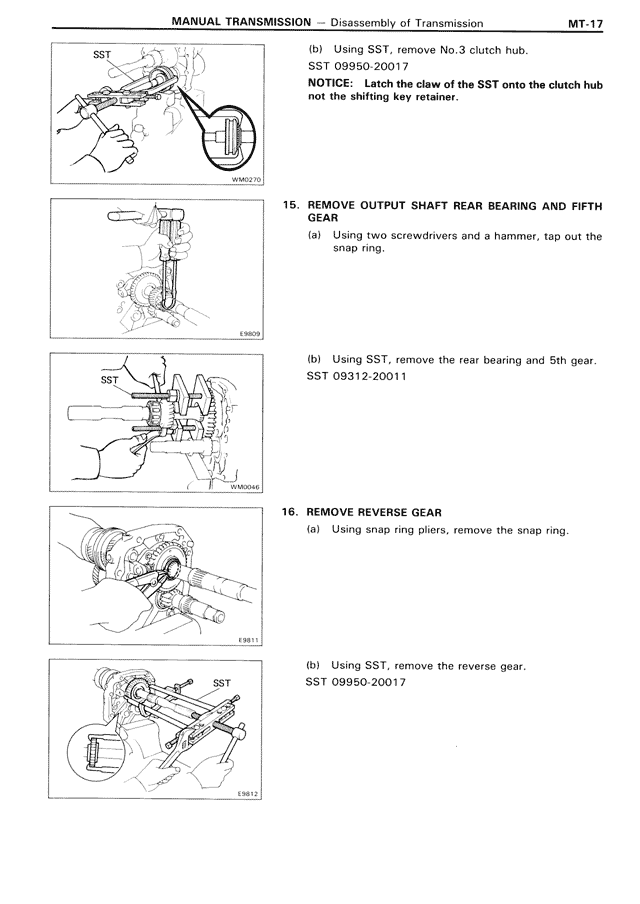

MANUAL TRANSMISSION — Disassembly of Transmission — MK3 Supra Manual Transmission, page 17
100%
SST (b) Using SST, remove No.3 clutch hub. SST 09950-20017 NOTICE: Latch the claw of the SST onto the clutch hub not the shifting key retainer. WM8270 15. REMOVE OUTPUT SHAFT REAR BEARING AND FIFTH GEAR (a) Using two screwdrivers and a hammer, tap out the snap ring. E38909 (b) Using SST, remove the rear bearing and 5th gear. SST 09312-20011 SST WM9048 16. REMOVE REVERSE GEAR (a) Using snap ring pliers, remove the snap ring. E38911 (b) Using SST, remove the reverse gear. SST 09950-20017 SST E38912
