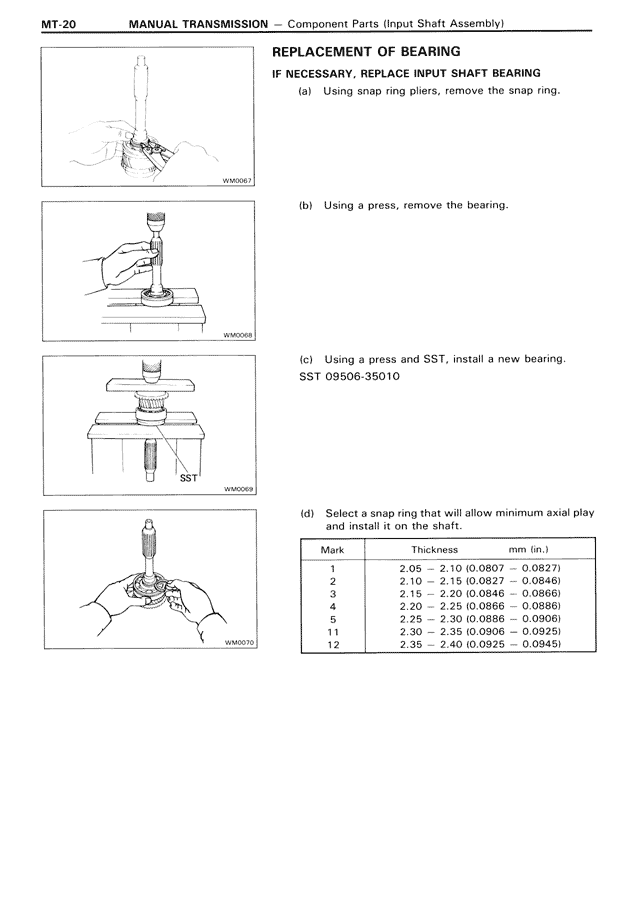

REPLACEMENT OF BEARING
IF NECESSARY, REPLACE INPUT SHAFT BEARING
(a) Using snap ring pliers, remove the snap ring.
(b) Using a press, remove the bearing.
(c) Using a press and SST, install a new bearing.
SST 09506-35010
(d) Select a snap ring that will allow minimum axial play and install it on the shaft.
Mark Thickness mm (in.)
1 2.05 — 2.10 (0.0807 — 0.0827)
2 2.10 — 2.15 (0.0827 — 0.0846)
3 2.15 — 2.20 (0.0846 — 0.0866)
4 2.20 — 2.25 (0.0866 — 0.0886)
5 2.25 — 2.30 (0.0886 — 0.0906)
11 2.30 — 2.35 (0.0906 — 0.0925)
12 2.35 — 2.40 (0.0925 — 0.0945)
