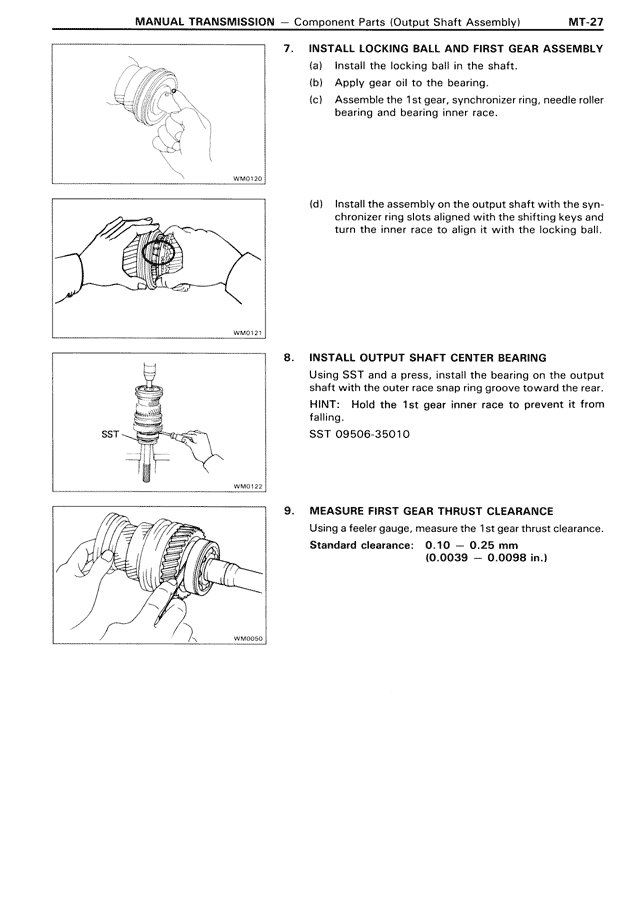

MANUAL TRANSMISSION — Component Parts (Output Shaft Assembly)     MT-27

7.    INSTALL LOCKING BALL AND FIRST GEAR ASSEMBLY
(a)   Install the locking ball in the shaft.
(b)   Apply gear oil to the bearing.
(c)   Assemble the 1st gear, synchronizer ring, needles roller
      bearing and bearing inner race.

WM0120

(d)   Install the assembly on the output shaft with the syn-
      chronizer ring slots aligned with the shifting keys and
      turn the inner race to align it with the locking ball.

WM0123

8.    INSTALL OUTPUT SHAFT CENTER BEARING
      Using SST and a press, install the bearing on the output
      shaft with the outer race snap ring groove towards the rear.
      HINT:  Hold the 1st gear inner race to prevent it from
      falling.
      SST 09506-35010

SST

WM0122

9.    MEASURE FIRST GEAR THRUST CLEARANCE
      Using a feeler gauge, measure the 1st gear thrust clearance.
      Standard clearance:  0.10 — 0.25 mm
                          (0.0039 — 0.0098 in.)

WM0050
