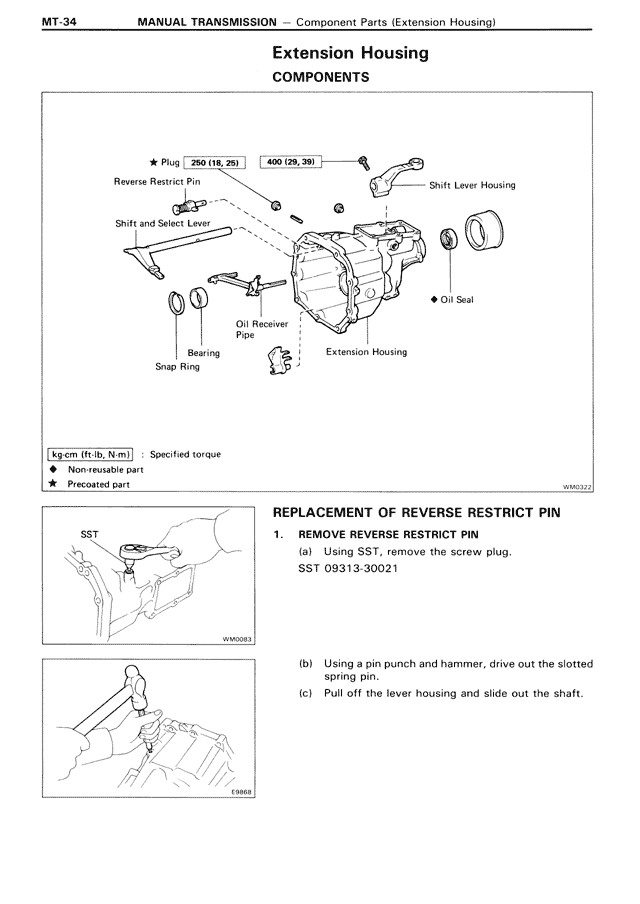

MT-34 MANUAL TRANSMISSION — Component Parts (Extension Housing)
Extension Housing
COMPONENTS
★ Plug 250 (18, 25) 400 (29, 30)
Reverse Restrict Pin
Shift and Select Lever
Shift Lever Housing
◆ Oil Seal
Oil Receiver Pipe
Extension Housing
Bearing
Snap Ring
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
★ Precoated part
WM0327
REPLACEMENT OF REVERSE RESTRICT PIN
1. REMOVE REVERSE RESTRICT PIN
(a) Using SST, remove the screw plug.
SST 09313-30021
SST
WM0083
(b) Using a pin punch and hammer, drive out the slotted spring pin.
(c) Pull off the lever housing and slide out the shaft.
E0868
