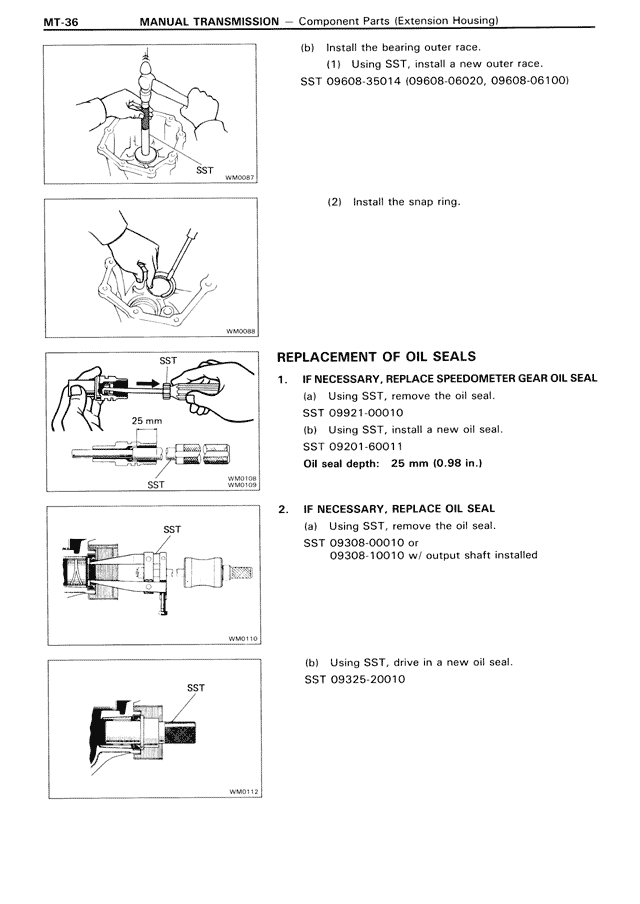

MT-36 MANUAL TRANSMISSION — Component Parts (Extension Housing)
(b) Install the bearing outer race.
(1) Using SST, install a new outer race.
SST 09608-35014 (09608-06020, 09608-06100)
(2) Install the snap ring.
REPLACEMENT OF OIL SEALS
1. IF NECESSARY, REPLACE SPEEDOMETER GEAR OIL SEAL
(a) Using SST, remove the oil seal.
SST 09921-00010
(b) Using SST, install a new oil seal.
SST 09201-60011
Oil seal depth: 25 mm (0.98 in.)
2. IF NECESSARY, REPLACE OIL SEAL
(a) Using SST, remove the oil seal.
SST 09308-00010 or
09308-10010 w/ center output shaft installed
(b) Using SST, drive in a new oil seal.
SST 09325-20010
