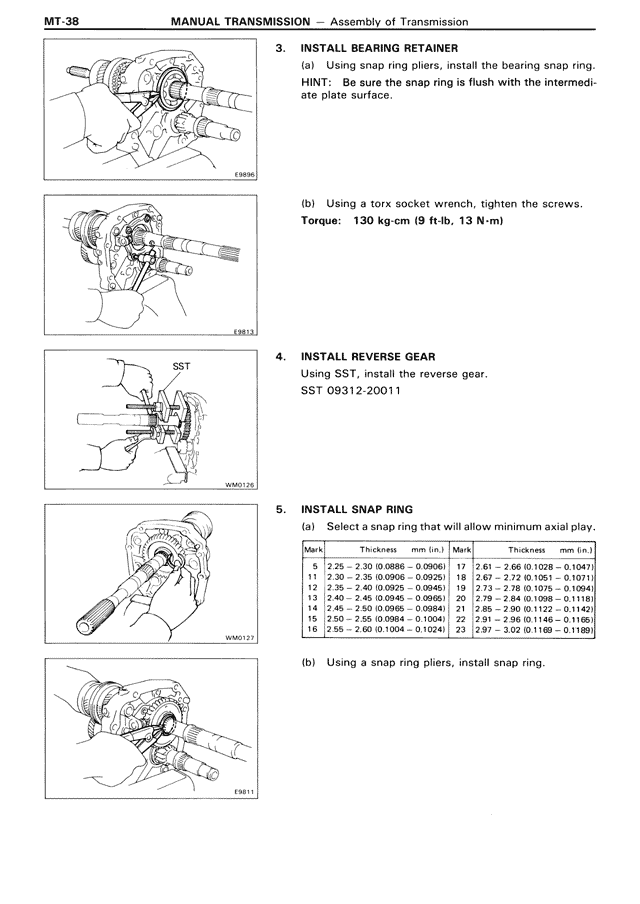

MT-38 MANUAL TRANSMISSION — Assembly of Transmission
3. INSTALL BEARING RETAINER
(a) Using snap ring pliers, install the bearing snap ring.
HINT: Be sure the snap ring is flush with the intermediate plate surface.
(b) Using a torx socket wrench, tighten the screws.
Torque: 130 kg-cm (9 ft-lb, 13 N-m)
4. INSTALL REVERSE GEAR
Using SST, install the reverse gear.
SST 09312-20011
5. INSTALL SNAP RING
(a) Select a snap ring that will allow minimum axial play.
Mark Thickness mm (in.) Mark Thickness mm (in.)
5 2.25 - 2.30 (0.0886 - 0.0906) 17 2.61 - 2.66 (0.1028 - 0.1047)
11 2.30 - 2.35 (0.0906 - 0.0925) 18 2.67 - 2.72 (0.1051 - 0.1071)
12 2.35 - 2.40 (0.0925 - 0.0945) 19 2.73 - 2.78 (0.1075 - 0.1094)
13 2.40 - 2.45 (0.0945 - 0.0965) 20 2.79 - 2.84 (0.1098 - 0.1118)
14 2.45 - 2.50 (0.0965 - 0.0984) 21 2.85 - 2.90 (0.1122 - 0.1142)
15 2.50 - 2.55 (0.0984 - 0.1004) 22 2.91 - 2.96 (0.1146 - 0.1165)
16 2.55 - 2.60 (0.1004 - 0.1024) 23 2.97 - 3.02 (0.1169 - 0.1189)
(b) Using a snap ring pliers, install snap ring.
