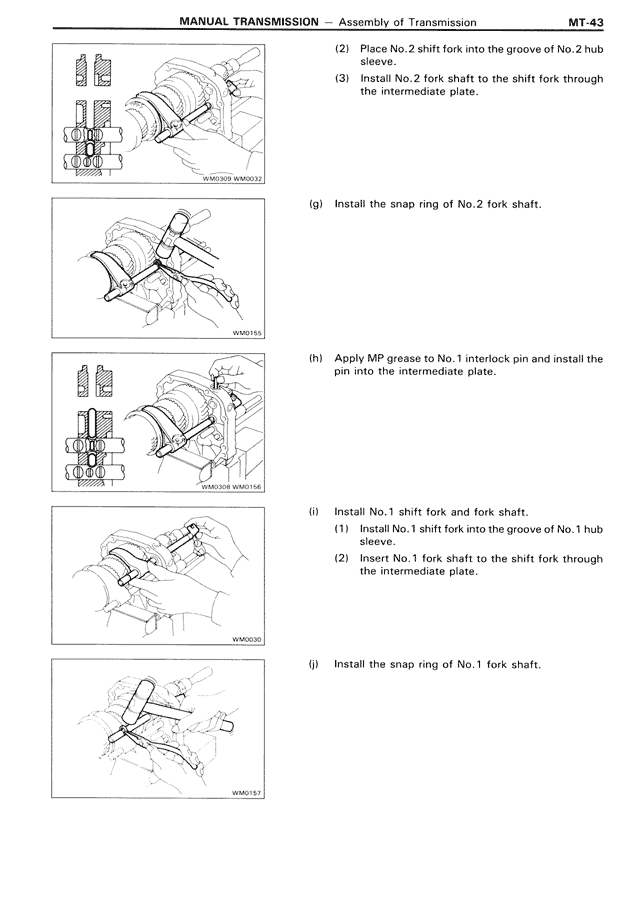

MANUAL TRANSMISSION — Assembly of Transmission — MK3 Supra Manual Transmission, page 43
100%
MANUAL TRANSMISSION — Assembly of Transmission MT-43 (2) Place No. 2 shift fork into the groove of No. 2 hub sleeve. (3) Install No. 2 fork shaft to the shift fork through the intermediate plate. (g) Install the snap ring of No. 2 fork shaft. (h) Apply MP grease to No. 1 interlock pin and install the pin into the intermediate plate. (i) Install No. 1 shift fork and fork shaft. (1) Install No. 1 shift fork into the groove of No. 1 hub sleeve. (2) Insert No. 1 fork shaft to the shift fork through the intermediate plate. (j) Install the snap ring of No. 1 fork shaft.
