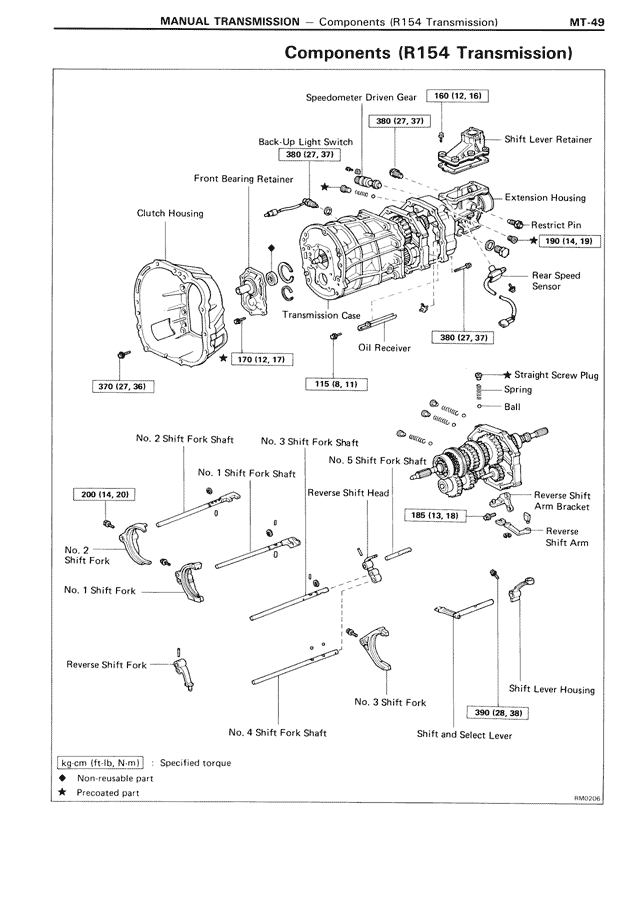

Components (R154 Transmission)
Speedometer Driven Gear
160 [12, 16]
380 [27, 37]
Back-Up Light Switch
380 [27, 37]
Shift Lever Retainer
Front Bearing Retainer
Extension Housing
Restrict Pin
Clutch Housing
130 [14, 18]
Rear Speed
Sensor
Transmission Case
380 [27, 37]
Oil Receiver
Straight Screw Plug
Spring
370 [27, 38]
115 [8, 11]
Ball
No. 2 Shift Fork Shaft
No. 3 Shift Fork Shaft
No. 5 Shift Fork Shaft
No. 1 Shift Fork Shaft
Reverse Shift Head
Reverse Shift
200 [14, 20]
Arm Bracket
185 [13, 18]
Reverse Shift Arm
No. 2
Shift Fork
No. 1 Shift Fork
Reverse Shift Fork
Shift Lever Housing
No. 3 Shift Fork
390 [28, 38]
No. 4 Shift Fork Shaft
Shift and Select Lever
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
★ Precoated part
RM0206
