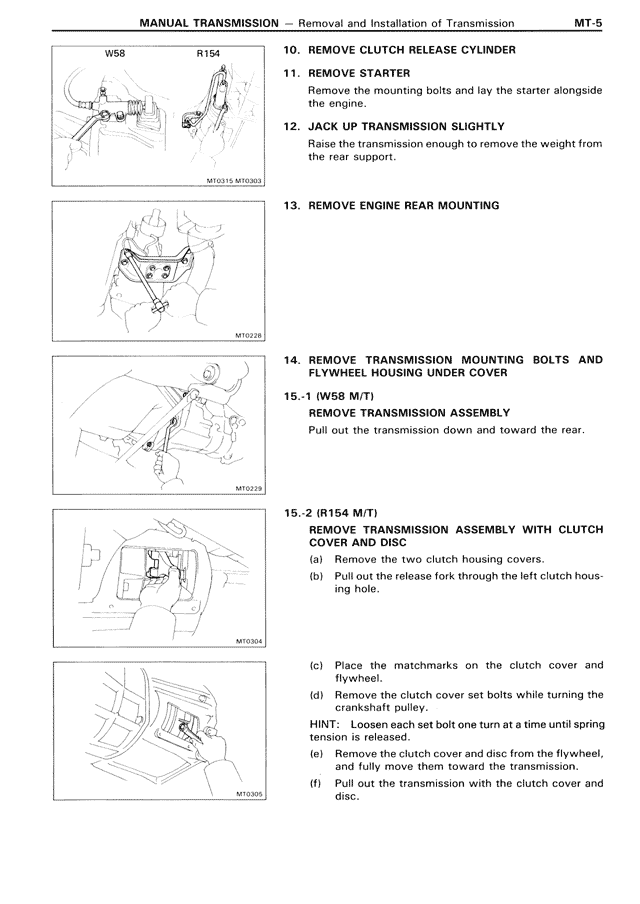

MANUAL TRANSMISSION — Removal and Installation of Transmission — MK3 Supra Manual Transmission, page 5
100%
10. REMOVE CLUTCH RELEASE CYLINDER 11. REMOVE STARTER Remove the mounting bolts and lay the starter alongside the engine. 12. JACK UP TRANSMISSION SLIGHTLY Raise the transmission enough to remove the weight from the rear support. 13. REMOVE ENGINE REAR MOUNTING 14. REMOVE TRANSMISSION MOUNTING BOLTS AND FLYWHEEL HOUSING UNDER COVER 15.-1 (W58 M/T) REMOVE TRANSMISSION ASSEMBLY Pull out the transmission down and toward the rear. 15.-2 (R154 M/T) REMOVE TRANSMISSION ASSEMBLY WITH CLUTCH COVER AND DISC (a) Remove the two clutch housing covers. (b) Pull out the release fork through the left clutch housing hole. (c) Place the matchmarks on the clutch cover and flywheel. (d) Remove the clutch cover set bolts while turning the crankshaft pulley. HINT: Loosen each set bolt one turn at a time until spring tension is released. (e) Remove the clutch cover and disc from the flywheel, and fully move them toward the transmission. (f) Pull out the transmission with the clutch cover and disc.
