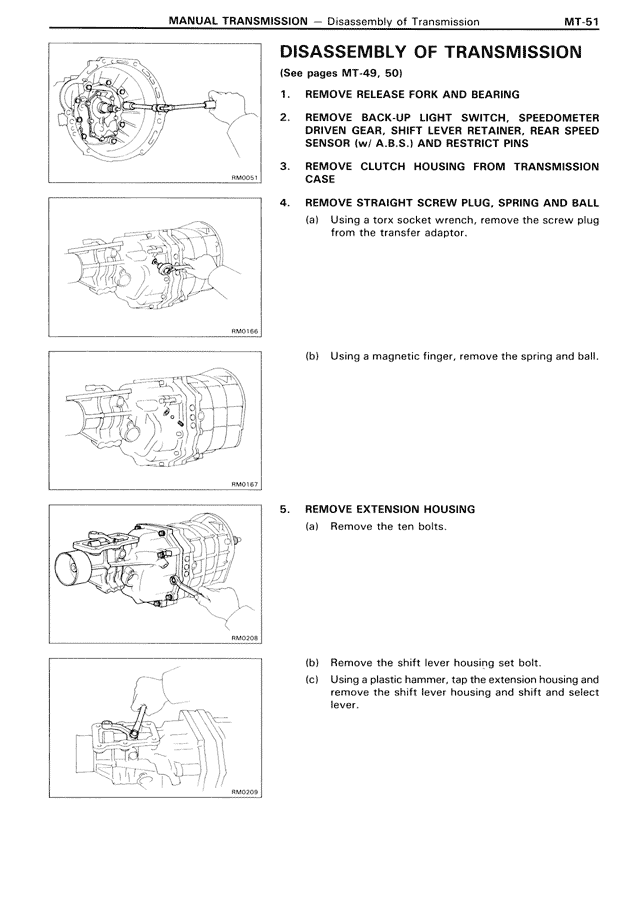

DISASSEMBLY OF TRANSMISSION
(See pages MT-49, 50)
1. REMOVE RELEASE FORK AND BEARING
2. REMOVE BACK-UP LIGHT SWITCH, SPEEDOMETER DRIVEN GEAR, SHIFT LEVER RETAINER, REAR SPEED SENSOR (w/ A.B.S.) AND RESTRICT PINS
3. REMOVE CLUTCH HOUSING FROM TRANSMISSION CASE
4. REMOVE STRAIGHT SCREW PLUG, SPRING AND BALL
(a) Using a torx socket wrench, remove the screw plug from the transfer adaptor.
(b) Using a magnetic finger, remove the spring and ball.
5. REMOVE EXTENSION HOUSING
(a) Remove the ten bolts.
(b) Remove the shift lever housing set bolt.
(c) Using a plastic hammer, tap the extension housing and remove the shift lever housing and shift lever and select lever.
RMX051
RMX166
RMX167
RMX206
RMX203
