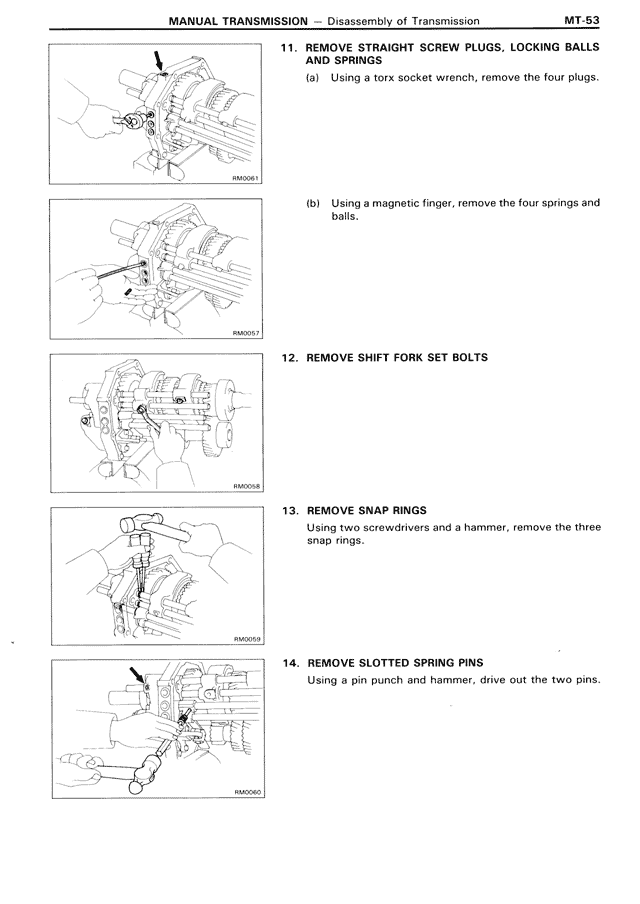

MANUAL TRANSMISSION — Disassembly of Transmission — MK3 Supra Manual Transmission, page 53
100%
11. REMOVE STRAIGHT SCREW PLUGS, LOCKING BALLS AND SPRINGS (a) Using a torx socket wrench, remove the four plugs. RM0061 (b) Using a magnetic finger, remove the four springs and balls. RM0057 12. REMOVE SHIFT FORK SET BOLTS RM0058 13. REMOVE SNAP RINGS Using two screwdrivers and a hammer, remove the three snap rings. RM0059 14. REMOVE SLOTTED SPRING PINS Using a pin punch and hammer, drive out the two pins. RM0060
