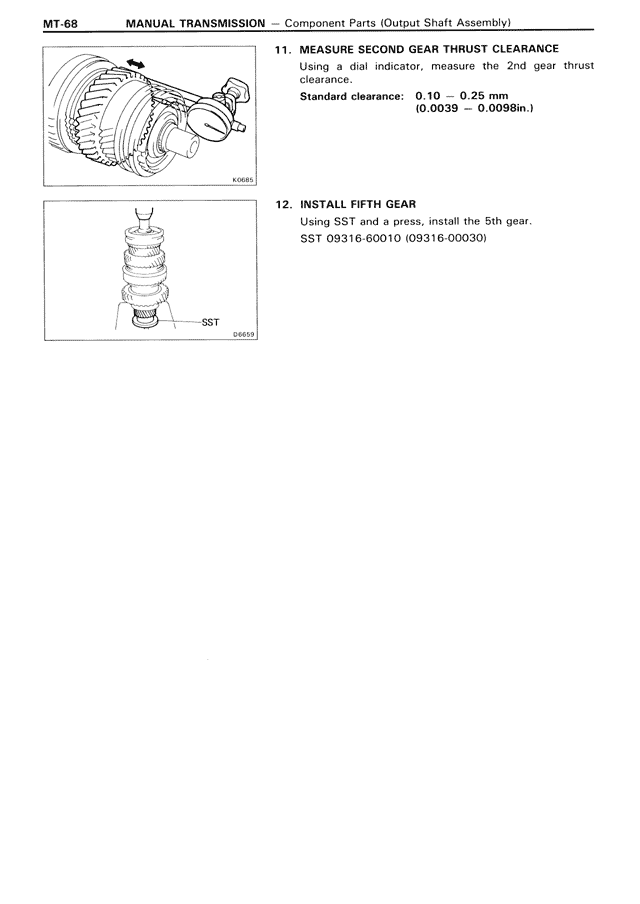

MT-68 MANUAL TRANSMISSION — Component Parts (Output Shaft Assembly) 11. MEASURE SECOND GEAR THRUST CLEARANCE Using a dial indicator, measure the 2nd gear thrust clearance. Standard clearance: 0.10 — 0.25 mm (0.0039 — 0.0098in.) 12. INSTALL FIFTH GEAR Using SST and a press, install the 5th gear. SST 09316-60010 (09316-00030) SST
